1.106.1600.58
1.106.1600.58
Hummel

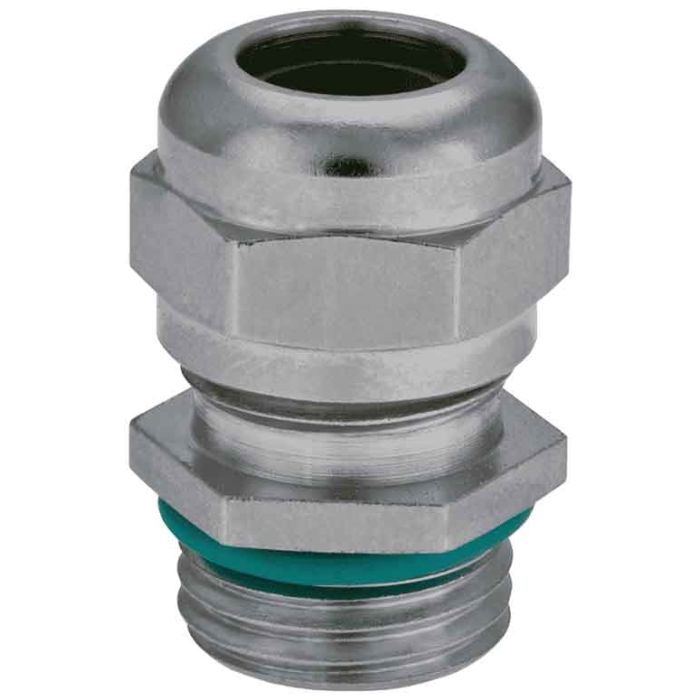

Cable gland made of brass for high temperature applications
Cable gland made of brass for high temperature applications Protection class - IP 68. Version - short. Seal - FKM
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1106160058 |
| Weight (kg) | 0.033 |
| Customs tariff number | 74199990 |
| EAN code | 4033878405413 |
| ETIM 7 | EC000441 |
| Packaging Unit | 50 |
| Height (mm) | 19.0000 |
| Certificates | CE |
| Version | short |
| External thread (AG) | M16 x 1,5 |
| Material seals / O-rings | FKM |
| Cable diameter (mm) | 7 – 9 |
| Wrench size SW1 / SW2 (mm) | 18/18 |
| Protection class | IP 68 |
| Material | Nickel-plated brass |
| Seal | FKM |
| Thread length (mm) | 5.0000 |
| Variant | Metric |
| Tightening torque [Nm] | 6.0000 |
| Wrench size 1 (SW1) [mm] | 18.0000 |
| Wrench size (SW) [mm] | 18.0000 |
| Norms | RoHS |
| Minimum cable diameter (mm) | 0 - 10 |
| Maximum cable diameter (mm) | 0 - 10 |
| Temperature Range | -25°C to +200°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
