1.106.5200.01
1.106.5200.01
Hummel

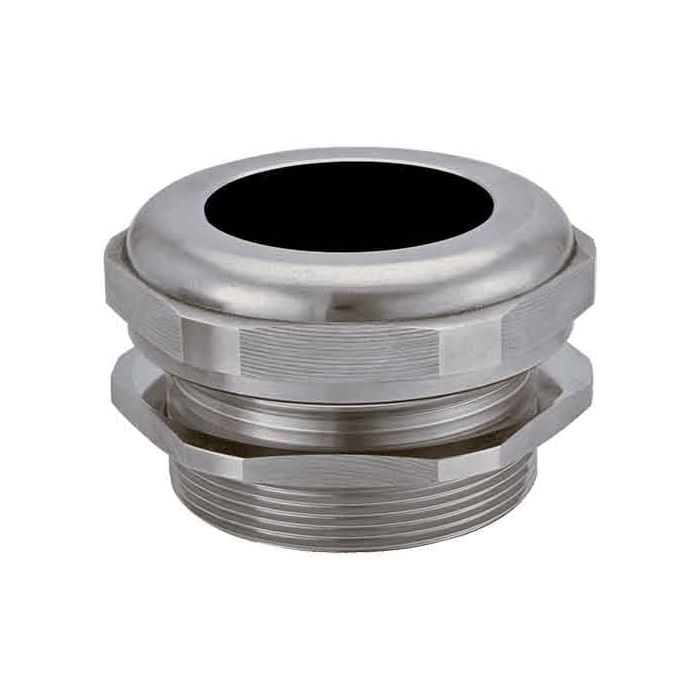

Cable gland made of brass with large dimensions
Cable gland made of brass with large dimensions Protection class - IP 68. Version - short. Seal - NBR
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1106520001 |
| Weight (kg) | 1.15 |
| Further information | AISI upon request |
| Customs tariff number | 74199990 |
| EAN code | 4033878405949 |
| ETIM 7 | EC000441 |
| Packaging Unit | 1 |
| Height (mm) | 42.0000 |
| Certificates | CE |
| Version | short |
| External thread (AG) | G 2 1/2" |
| Material seals / O-rings | NBR |
| Cable diameter (mm) | 48 – 55 |
| Wrench size SW1 / SW2 (mm) | 80/80 |
| Protection class | IP 68 |
| Material | Nickel-plated brass |
| Seal | NBR |
| Thread length (mm) | 18.0000 |
| Variant | G |
| Tightening torque [Nm] | 40.0000 |
| Wrench size 1 (SW1) [mm] | 80.0000 |
| Wrench size (SW) [mm] | 80.0000 |
| Norms | RoHS |
| Minimum cable diameter (mm) | 41 - 50 |
| Maximum cable diameter (mm) | 51 - 60 |
| Temperature Range | -20°C to +100°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
