1.143.2500.50
1.143.2500.50
Hummel

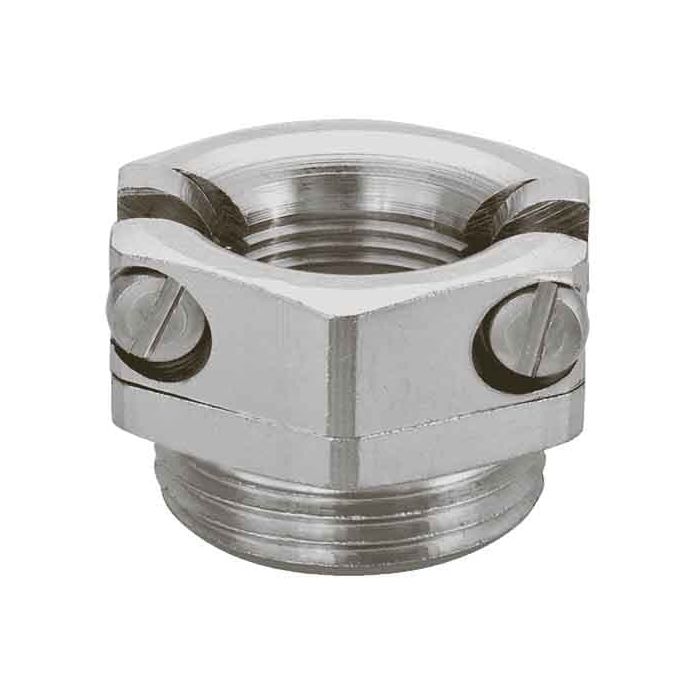

Pressure screw with strain relief and bend protection
Pressure screw with strain relief and bend protection from Hummel. Metric.
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 1143250050 |
| Manufacturer | Hummel |
| Weight (kg) | 0.0356 |
| Customs tariff number | 74199990 |
| EAN code | 4033878406236 |
| ETIM 7 | EC000879 |
| Packaging Unit | 50 |
| Height (mm) | 21 |
| External thread (AG) | M25 x 1.5 |
| Cable diameter (mm) | 12 – 21.5 |
| Material | Nickel-plated brass |
| Thread length (mm) | 8 |
| Tightening torque [Nm] | 12 |
| Wrench size 1 (SW1) [mm] | 34 |
| Wrench size (SW) [mm] | 34 |
| RoHS | RoHS |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
