Hummel

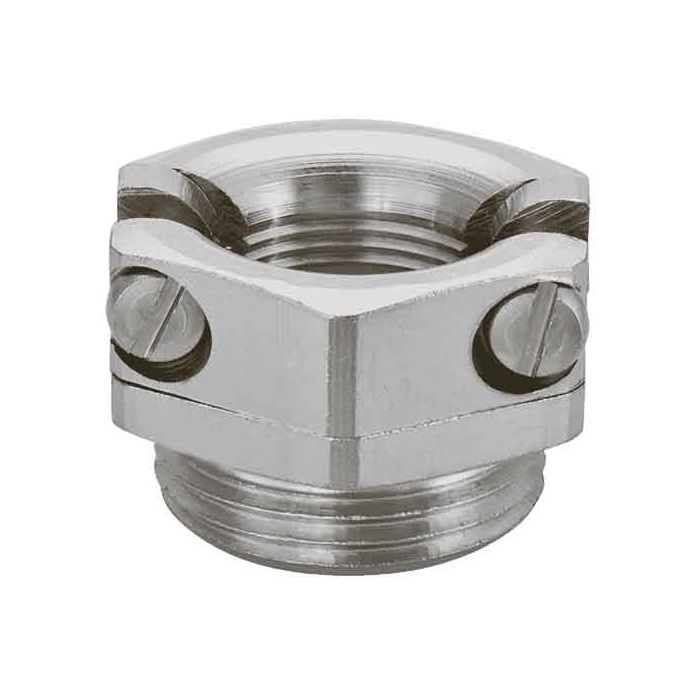

Pressure screw with strain relief and bend protection
Pressure screw with strain relief and bend protection from Hummel. Metric.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1143320050 |
| Manufacturer | Hummel |
| Weight (kg) | 0.0857 |
| Customs tariff number | 74199990 |
| EAN code | 4033878406250 |
| ETIM 7 | EC000879 |
| Packaging Unit | 25 |
| Height (mm) | 22.0000 |
| RoHS | RoHS |
| External thread (AG) | M32 x 1.5 |
| Cable diameter (mm) | 16 – 27 |
| Material | Nickel-plated brass |
| Thread length (mm) | 8.0000 |
| Tightening torque [Nm] | 15.0000 |
| Wrench size 1 (SW1) [mm] | 42.0000 |
| Wrench size (SW) [mm] | 42.0000 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
