1.143.3600.01
1.143.3600.01
Hummel

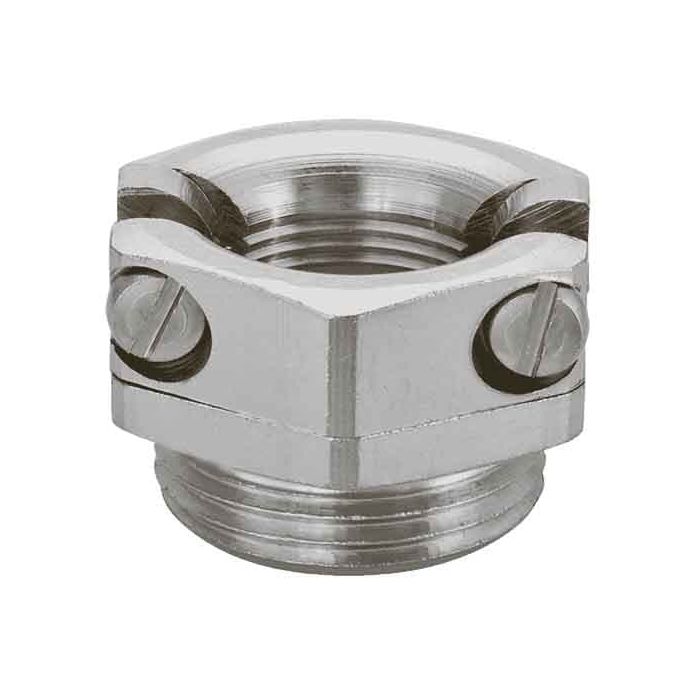

Pressure screw with strain relief and bend protection
Pressure screw with strain relief and bend protection from Hummel. PG.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1143360001 |
| Manufacturer | Hummel |
| Weight (kg) | 0.1665 |
| Customs tariff number | 74122000 |
| EAN code | 4033878406267 |
| ETIM 7 | EC000879 |
| Packaging Unit | 10 |
| Height (mm) | 25.3 |
| RoHS | RoHS |
| External thread (AG) | PG 36 |
| Cable diameter (mm) | 25 – 37 |
| Material | Nickel-plated brass |
| Thread length (mm) | 9.5 |
| Tightening torque [Nm] | 16.0000 |
| Wrench size 1 (SW1) [mm] | 52.0000 |
| Wrench size (SW) [mm] | 52.0000 |
