1.154.1600.50
1.154.1600.50
Hummel

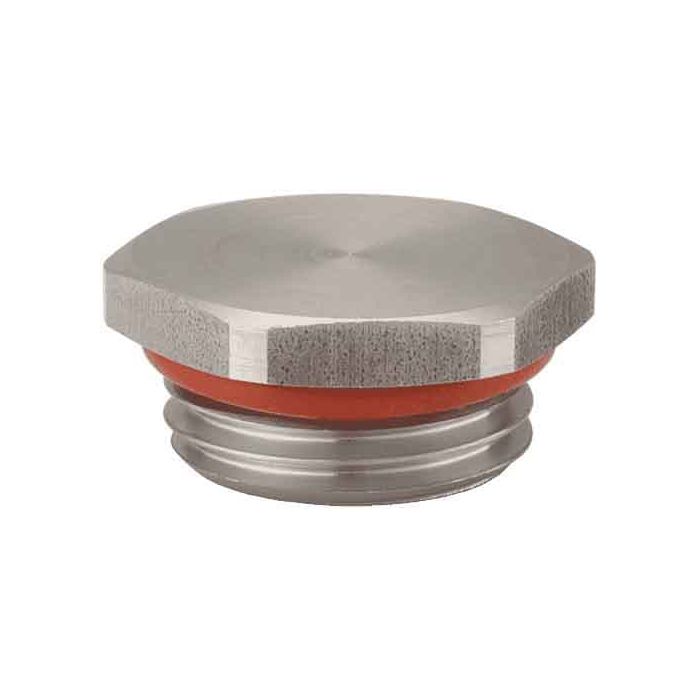

Plug made of stainless steel with thread
Plug made of stainless steel with thread from Hummel. Metric. Protection class IP 68 – 10 bar, IP 69 K - -60°C to +180°C
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1154160050 |
| Manufacturer | Hummel |
| Weight (kg) | 0.00878 |
| Further information | Elongated threads on request, Other sizes upon request |
| Customs tariff number | 73181575 |
| EAN code | 4033878406656 |
| ETIM 7 | EC000032 |
| Packaging Unit | 10 |
| Height (mm) | 9.0000 |
| Certificates | DNV-GL |
| Version | short |
| External thread (AG) | M16 x 1.5 |
| Material seals / O-rings | VMQ (silicone) |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | INOX 1.4305 |
| Thread length (mm) | 6.0000 |
| Tightening torque [Nm] | 6.0000 |
| Wrench size 1 (SW1) [mm] | 19.0000 |
| Wrench size (SW) [mm] | 19.0000 |
| Temperature Range | -60°C to +180°C |
| RoHS | RoHS |
