1.155.3200.50
1.155.3200.50
Hummel

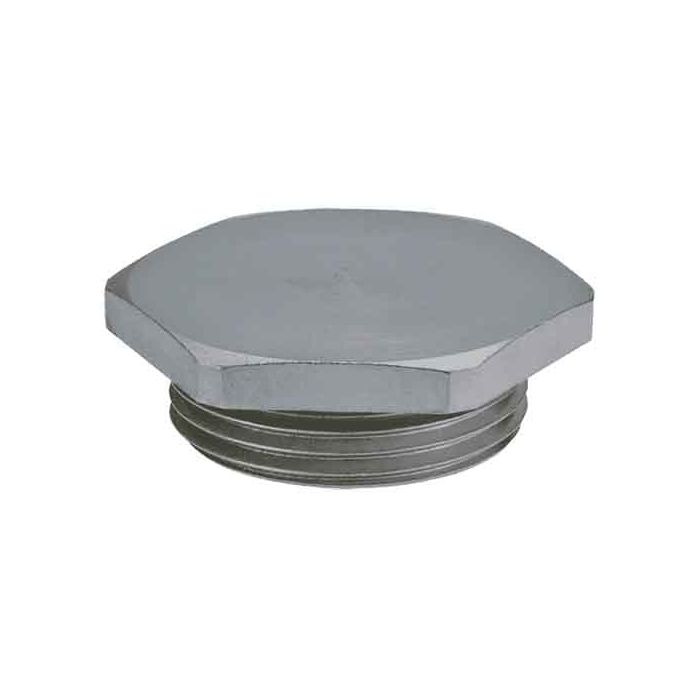

Plug made of brass with thread
Plug made of brass with thread from Hummel. Metric. Protection class IP 54 -
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Product Brand Name | 1155320050 |
Manufacturer | Hummel |
Weight (kg) | 0.05 |
Further information | Without o-ring, NPT thread on request, Elongated threads on request |
Customs tariff number | 74122000 |
EAN code | 4033878406847 |
ETIM 7 | EC000032 |
Packaging Unit | 25 |
Height (mm) | 12.5 |
Certificates | DNV-GL |
RoHS | RoHS |
External thread (AG) | M32 x 1.5 |
Protection class | IP 54 |
Material | Nickel-plated brass |
Thread length (mm) | 8.0000 |
Tightening torque [Nm] | 15.0000 |
Wrench size 1 (SW1) [mm] | 41.0000 |
Wrench size (SW) [mm] | 41.0000 |
Attribute | Value |
---|---|
Data Sheet | Click here to view |
