Hummel 1.156.0900.01 Plug made of brass with thread

1.156.0900.01

1.156.0900.01

Hummel

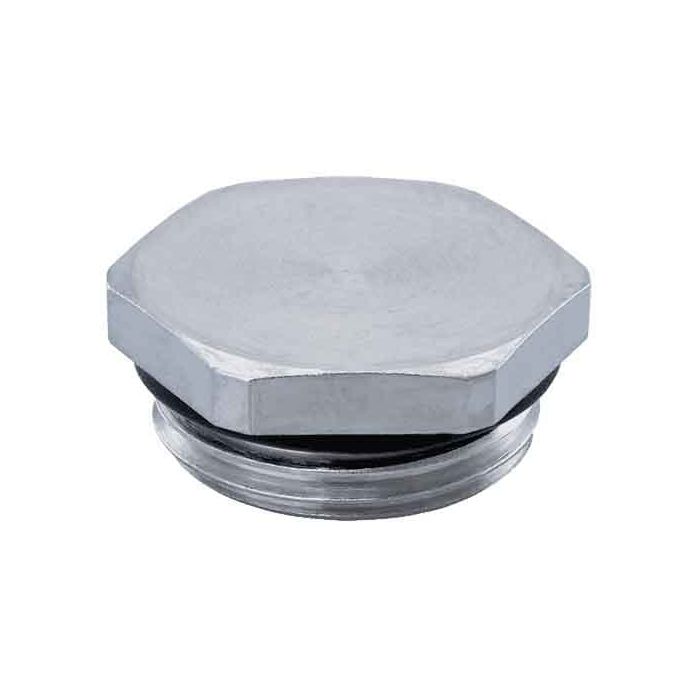

Plug made of brass with thread

Plug made of brass with thread from Hummel. PG. Protection class IP 68 – 10 bar, IP 69 K - -20°C to +95°C
In stock
£1.51
More Information
Attribute Value
Product Brand Name 1156090001
Manufacturer Hummel
Weight (kg) 0.00795
Further information NPT thread on request, Elongated threads on request, Other O-Ring materials upon request
Customs tariff number 74122000
EAN code 4033878406922
ETIM 7 EC000032
Packaging Unit 100
Height (mm) 9
Certificates DNV-GL
External thread (AG) PG 9
Material seals / O-rings NBR
Protection class IP 68 – 10 bar, IP 69 K
Material Nickel-plated brass
Thread length (mm) 6
Tightening torque [Nm] 6
Wrench size 1 (SW1) [mm] 17
Wrench size (SW) [mm] 17
Temperature Range -20°C to +95°C
RoHS RoHS
More Information
Attribute Value
Data Sheet Click here to view
