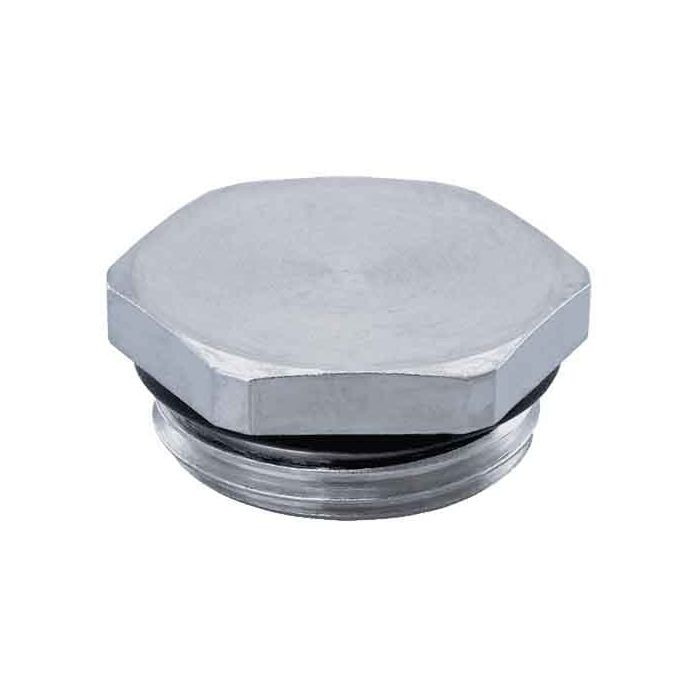

Hummel 1.156.2500.50 Plug made of brass with thread

1.156.2500.50

1.156.2500.50

Hummel

Plug made of brass with thread

Plug made of brass with thread from Hummel. Metric. Protection class IP 68 – 10 bar, IP 69 K - -20°C to +95°C
In stock
£3.59
More Information
Attribute Value
Product Brand Name 1156250050
Manufacturer Hummel
Weight (kg) 0.02367
Further information NPT thread on request, Elongated threads on request, Other O-Ring materials upon request
Customs tariff number 74122000
EAN code 4033878407004
ETIM 7 EC000032
Packaging Unit 50
Height (mm) 10.5
Certificates DNV-GL
External thread (AG) M25 x 1.5
Material seals / O-rings NBR
Protection class IP 68 – 10 bar, IP 69 K
Material Nickel-plated brass
Thread length (mm) 7
Tightening torque [Nm] 12
Wrench size 1 (SW1) [mm] 30
Wrench size (SW) [mm] 30
Temperature Range -20°C to +95°C
RoHS RoHS
More Information
Attribute Value
Data Sheet Click here to view
