Hummel

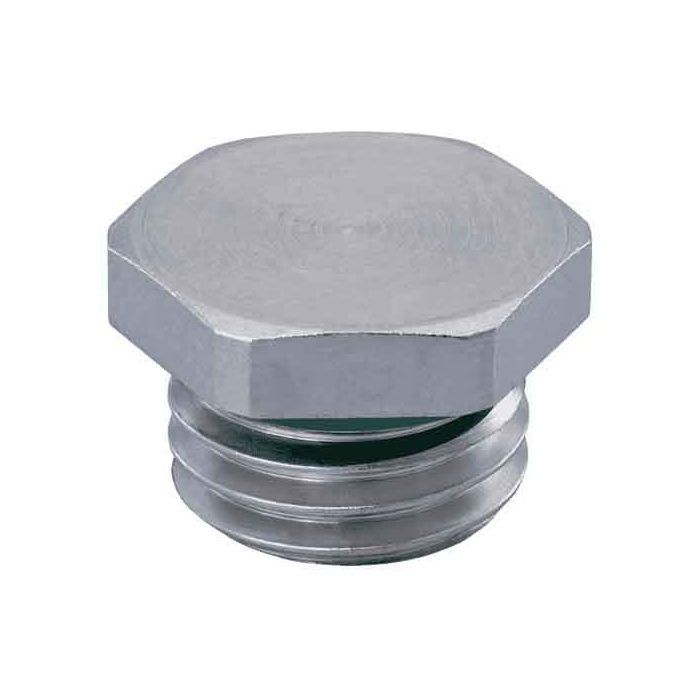

Plug made of brass with thread

Plug made of brass with thread from Hummel. PG. Protection class IP 68 – 10 bar, IP 69 K - -20°C to +180°C
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Product Brand Name 1157110001
Manufacturer Hummel
Weight (kg) 0.01044
Further information NPT thread on request, Elongated threads on request, Other O-Ring materials upon request
Customs tariff number 74122000
EAN code 4033878407110
ETIM 7 EC000032
Packaging Unit 100
Height (mm) 9.5
Certificates DNV-GL
RoHS RoHS
External thread (AG) PG 11
Material seals / O-rings FKM
Protection class IP 68 – 10 bar, IP 69 K
Material Nickel-plated brass
Thread length (mm) 6.0000
Tightening torque [Nm] 6.5
Wrench size 1 (SW1) [mm] 20.0000
Wrench size (SW) [mm] 20.0000
Temperature Range -20°C to +180°C
