Hummel 1.157.1600.01 Plug made of brass with thread

1.157.1600.01

1.157.1600.01

Hummel

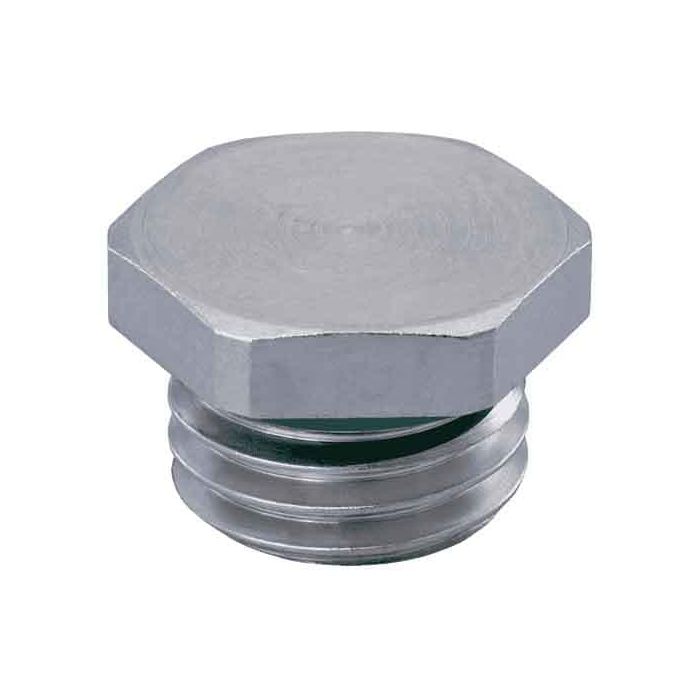

Plug made of brass with thread

Plug made of brass with thread from Hummel. PG. Protection class IP 68 – 10 bar, IP 69 K - -20°C to +180°C
In stock
£41.96
More Information
Attribute Value
Product Brand Name 1157160001
Manufacturer Hummel
Weight (kg) 0.01616
Further information NPT thread on request, Elongated threads on request, Other O-Ring materials upon request
Customs tariff number 74122000
EAN code 4033878407141
ETIM 7 EC000032
Packaging Unit 100
Height (mm) 10
Certificates DNV-GL
External thread (AG) PG 16
Material seals / O-rings FKM
Protection class IP 68 – 10 bar, IP 69 K
Material Nickel-plated brass
Thread length (mm) 6.5
Tightening torque [Nm] 10
Wrench size 1 (SW1) [mm] 24
Wrench size (SW) [mm] 24
Temperature Range -20°C to +180°C
RoHS RoHS
More Information
Attribute Value
Data Sheet Click here to view
