Hummel 1.157.5000.50 Plug made of brass with thread

1.157.5000.50

1.157.5000.50

Hummel

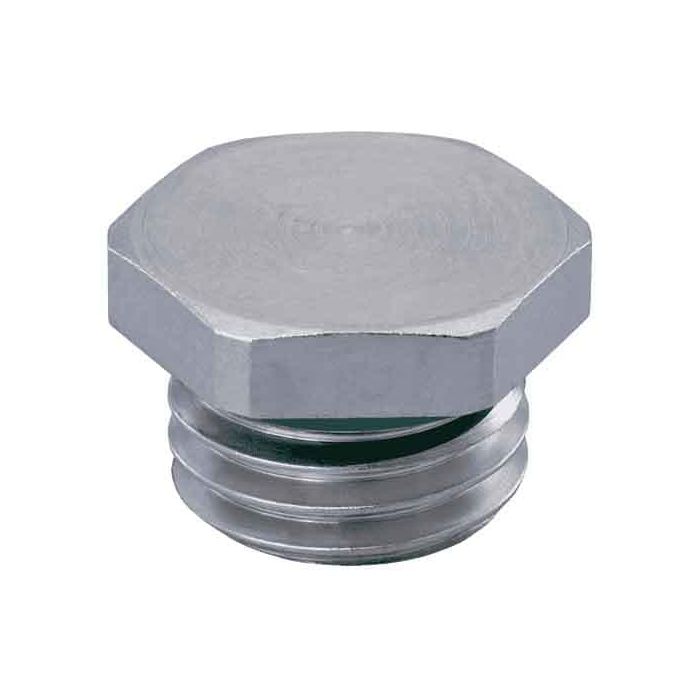

Plug made of brass with thread

Plug made of brass with thread from Hummel. Metric. Protection class IP 68 – 10 bar, IP 69 K - -20°C to +180°C
In stock
£0.22
More Information
Attribute Value
Product Brand Name 1157500050
Manufacturer Hummel
Weight (kg) 0.11689
Further information NPT thread on request, Elongated threads on request, Other O-Ring materials upon request
Customs tariff number 74122000
EAN code 4033878407257
ETIM 7 EC000032
Packaging Unit 10
Height (mm) 15
Certificates DNV-GL
External thread (AG) M50 x 1.5
Material seals / O-rings FKM
Protection class IP 68 – 10 bar, IP 69 K
Material Nickel-plated brass
Thread length (mm) 9
Tightening torque [Nm] 24
Wrench size 1 (SW1) [mm] 55
Wrench size (SW) [mm] 55
Temperature Range -20°C to +180°C
RoHS RoHS
More Information
Attribute Value
Data Sheet Click here to view
