1.192.1600.50
1.192.1600.50
Hummel

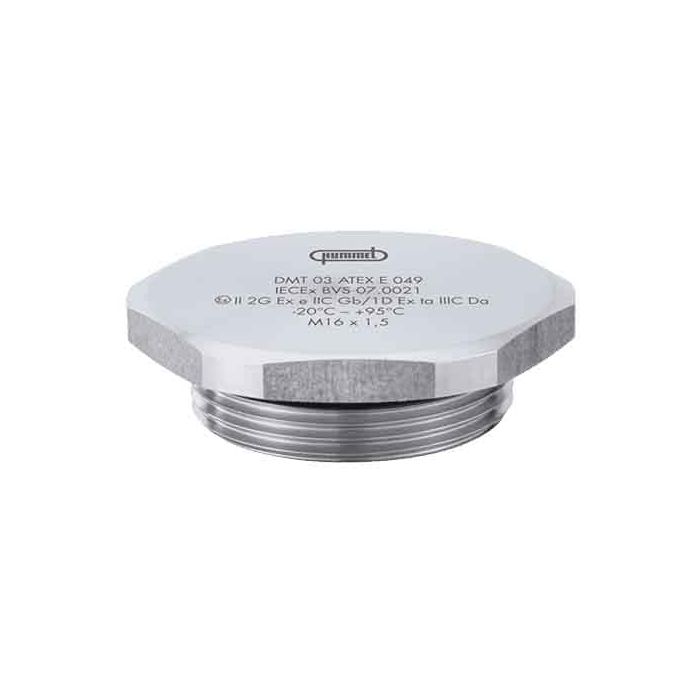

Plug made of stainless steel with thread for hazardous areas
Plug made of stainless steel with thread for hazardous areas from Hummel. Metric. Protection class IP 68 – 10 bar, IP 69 K - -20°C to +95°C
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 1192160050 |
| Manufacturer | Hummel |
| Weight (kg) | 0.00896 |
| Customs tariff number | 73181575 |
| EAN code | 4033878408025 |
| ETIM 7 | EC000032 |
| Packaging Unit | 10 |
| Height (mm) | 9 |
| Certificates | ATEX, EAC, INMETRO, IECEx, CE, DNV-GL |
| Version | short |
| External thread (AG) | M16 x 1.5 |
| Material seals / O-rings | NBR |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | INOX 1.4305 |
| Thread length (mm) | 6 |
| Tightening torque [Nm] | 6 |
| Wrench size 1 (SW1) [mm] | 19 |
| Wrench size (SW) [mm] | 19 |
| Ex-protection level | II 1D Ex ta IIIC Da, II 2G Ex e IIC Gb |
| Temperature Range | -20°C to +95°C |
| RoHS | RoHS |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
