1.194.3200.50

1.194.3200.50

1.194.3200.50

Hummel

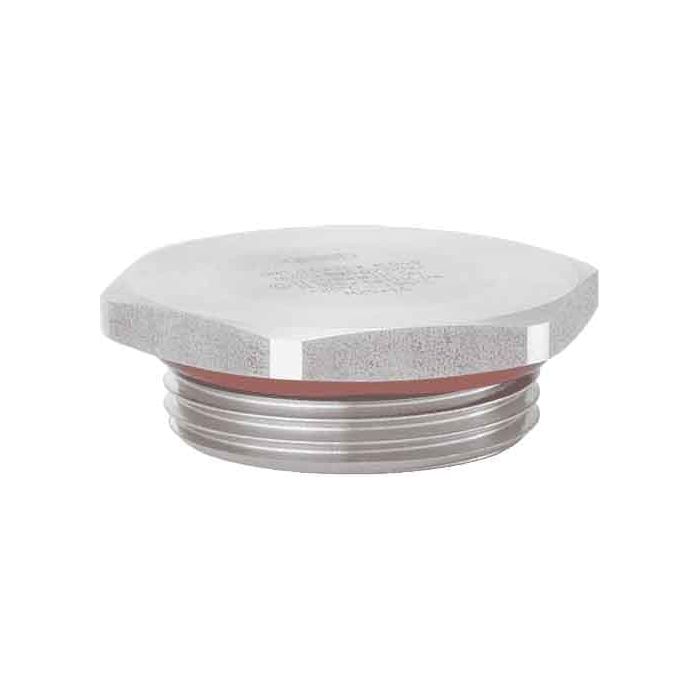

Plug made of stainless steel with thread for hazardous areas

Plug made of stainless steel with thread for hazardous areas from Hummel. Metric. Protection class IP 68 – 10 bar, IP 69 K - -60°C to +180°C
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Product Brand Name 1194320050
Manufacturer Hummel
Weight (kg) 0.0045
Customs tariff number 73181575
EAN code 4033878408384
ETIM 7 EC000032
Packaging Unit 5
Height (mm) 12.5
Certificates ATEX, EAC, INMETRO, IECEx, CE, DNV-GL
RoHS RoHS
Version short
External thread (AG) M32 x 1.5
Material seals / O-rings VMQ (silicone)
Protection class IP 68 – 10 bar, IP 69 K
Material INOX 1.4305
Thread length (mm) 8.0000
Tightening torque [Nm] 15.0000
Wrench size 1 (SW1) [mm] 41.0000
Wrench size (SW) [mm] 41.0000
Ex-protection level II 1D Ex ta IIIC Da, II 2G Ex e IIC Gb
Temperature Range -60°C to +180°C
More Information
Attribute Value
Data Sheet Click here to view
