Hummel

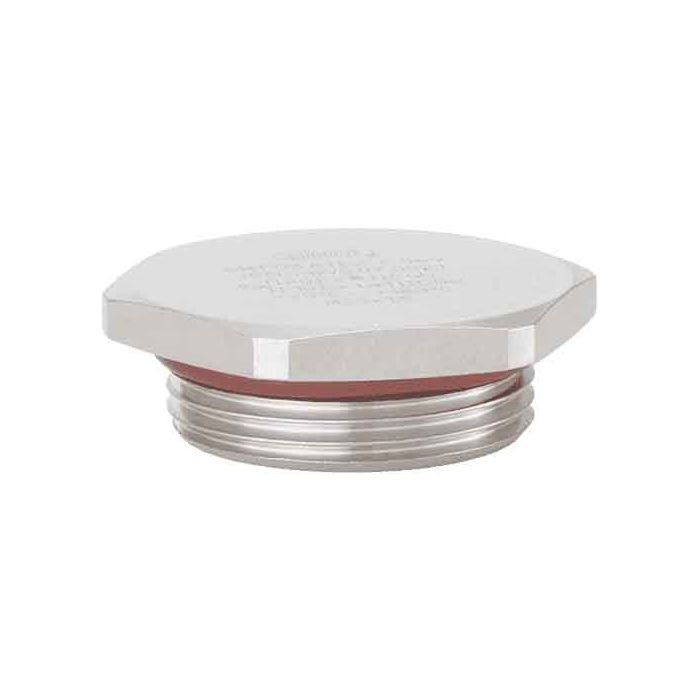

Plug made of brass with thread for hazardous areas
Plug made of brass with thread for hazardous areas from Hummel. PG. Protection class IP 68 – 10 bar, IP 69 K - -60°C to +180°C
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1199070001 |
| Manufacturer | Hummel |
| Weight (kg) | 0.00406 |
| Customs tariff number | 74122000 |
| EAN code | 4033878408797 |
| ETIM 7 | EC000032 |
| Packaging Unit | 50 |
| Height (mm) | 8.0000 |
| Certificates | ATEX, EAC, INMETRO, IECEx, CE, DNV-GL |
| RoHS | RoHS |
| External thread (AG) | PG 7 |
| Material seals / O-rings | VMQ (silicone) |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | Nickel-plated brass |
| Thread length (mm) | 5.0000 |
| Tightening torque [Nm] | 4.5 |
| Wrench size 1 (SW1) [mm] | 14.0000 |
| Wrench size (SW) [mm] | 14.0000 |
| Ex-protection level | II 1D Ex ta IIIC Da, II 2G Ex e IIC Gb |
| Temperature Range | -60°C to +180°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
