1.209.2900.15
1.209.2900.15
Hummel

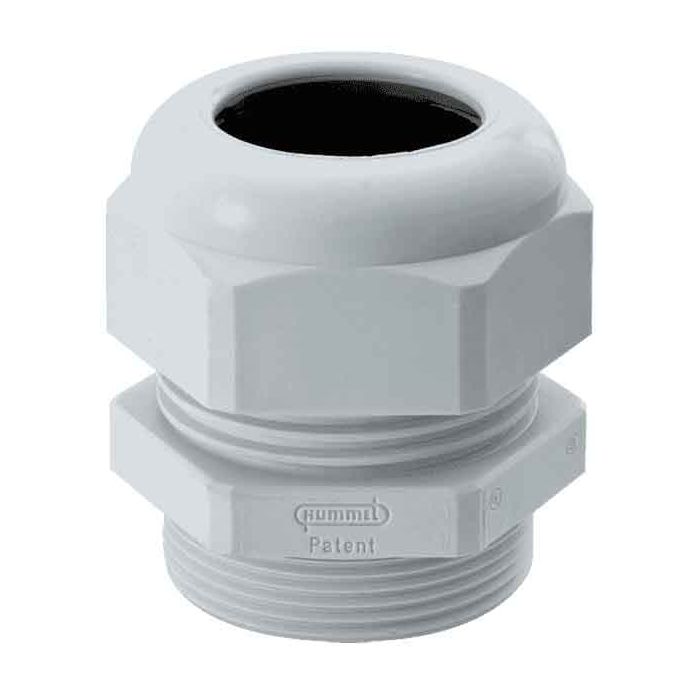

Cable gland made of polyamide
Cable gland made of polyamide Protection class - IP 68 – 10 bar, IP 69 K with additional o-ring. Version - short. Seal - NBR
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1209290015 |
| Video URL | https://youtu.be/TL8yBdE8RXU |
| Colour | grey |
| Weight (kg) | 0.0436 |
| Further information | With additional pre-assembled O-Ring upon request, Other sealing material e.g. Silicone upon request |
| Customs tariff number | 39269097 |
| EAN code | 4033878410745 |
| ETIM 7 | EC000441 |
| Packaging Unit | 25 |
| Height (mm) | 39.0000 |
| Certificates | DNV-GL, UL, CSA, Bahnzulassung, cUL, CE |
| Version | short |
| External thread (AG) | PG 29 |
| Cable diameter (mm) | 13 – 20 |
| Wrench size SW1 / SW2 (mm) | 42/42 |
| Protection class | IP 68 – 10 bar, IP 69 K with additional o-ring |
| Material | Polyamide V0 according to UL 94 |
| Seal | NBR |
| Thread length (mm) | 11.0000 |
| RAL | 7035.0000 |
| Variant | PG |
| Tightening torque [Nm] | 6.0000 |
| Wrench size 1 (SW1) [mm] | 42.0000 |
| Wrench size (SW) [mm] | 42.0000 |
| NEMA type rating | 4, 4X, 6 |
| Norms | RoHS |
| Minimum cable diameter (mm) | 11 - 20 |
| Maximum cable diameter (mm) | 11 - 20 |
| Temperature Range | -40°C to +100°C |
