Hummel

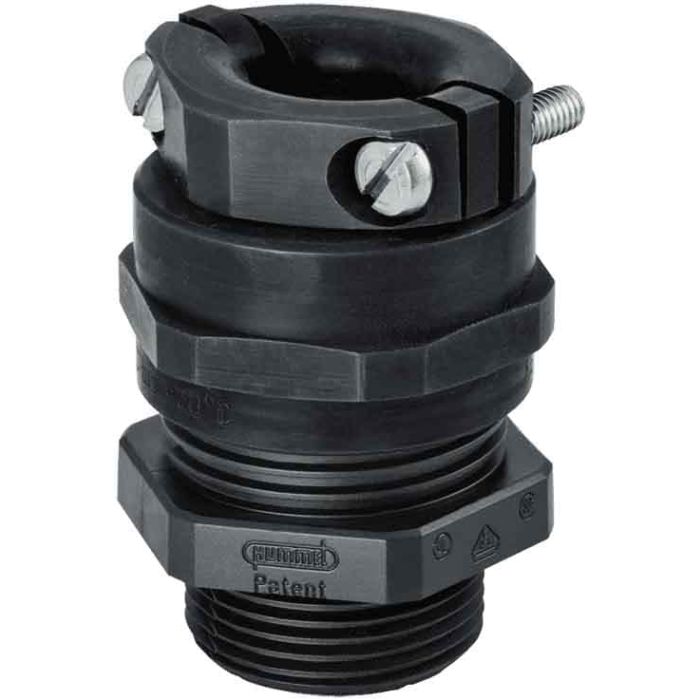

Cable gland made of polyamide with strain relief for hazardous areas
Cable gland made of polyamide with strain relief for hazardous areas Protection class - IP 68 – 10 bar, IP 69 K. Version - short. Seal - NBR
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 1215250150 |
| Colour | black |
| Weight (kg) | 0.03923 |
| Customs tariff number | 76169990 |
| EAN code | 4033878412022 |
| ETIM 7 | EC000441 |
| Packaging Unit | 25 |
| Height (mm) | 41 |
| Certificates | INMETRO, IECEx, CE, DNV-GL, EAC, ATEX |
| Version | short |
| External thread (AG) | M25 x 1,5 |
| Material seals / O-rings | NBR |
| Cable diameter (mm) | 13 – 18 |
| Wrench size SW1 / SW2 (mm) | 33/33 |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | Aluminium, Polyamide |
| Seal | NBR |
| Thread length (mm) | 11 |
| RAL | 9005 |
| Variant | Metric |
| Tightening torque [Nm] | 5 |
| Wrench size 1 (SW1) [mm] | 33 |
| Wrench size (SW) [mm] | 33 |
| Ex-protection level | II 1D Ex ta IIIC Da, II 2G Ex eb IIC Gb |
| Norms | RoHS |
| Minimum cable diameter (mm) | 11 - 20 |
| Maximum cable diameter (mm) | 11 - 20 |
| Temperature Range | -20°C to +70°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
