1.215.4001.50
1.215.4001.50
Hummel

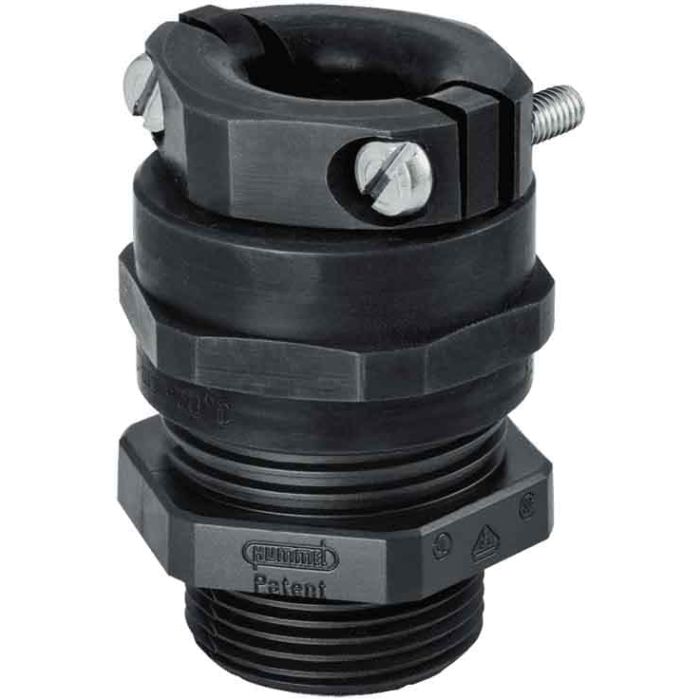

Cable gland made of polyamide with strain relief for hazardous areas
Cable gland made of polyamide with strain relief for hazardous areas Protection class - IP 68 – 10 bar, IP 69 K. Version - short. Seal - NBR
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 1215400150 |
| Colour | black |
| Weight (kg) | 0.12262 |
| Customs tariff number | 76169990 |
| EAN code | 4033878412060 |
| ETIM 7 | EC000441 |
| Packaging Unit | 10 |
| Height (mm) | 58 |
| Certificates | INMETRO, IECEx, CE, DNV-GL, EAC, ATEX |
| Version | short |
| External thread (AG) | M40 x 1,5 |
| Material seals / O-rings | NBR |
| Cable diameter (mm) | 22 – 32 |
| Wrench size SW1 / SW2 (mm) | 53/53 |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | Aluminium, Polyamide |
| Seal | NBR |
| Thread length (mm) | 13 |
| RAL | 9005 |
| Variant | Metric |
| Tightening torque [Nm] | 10 |
| Wrench size 1 (SW1) [mm] | 53 |
| Wrench size (SW) [mm] | 53 |
| Ex-protection level | II 1D Ex ta IIIC Da, II 2G Ex eb IIC Gb |
| Norms | RoHS |
| Minimum cable diameter (mm) | 21 - 30 |
| Maximum cable diameter (mm) | 31 - 40 |
| Temperature Range | -20°C to +70°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
