1.219.1601.30
1.219.1601.30
Hummel

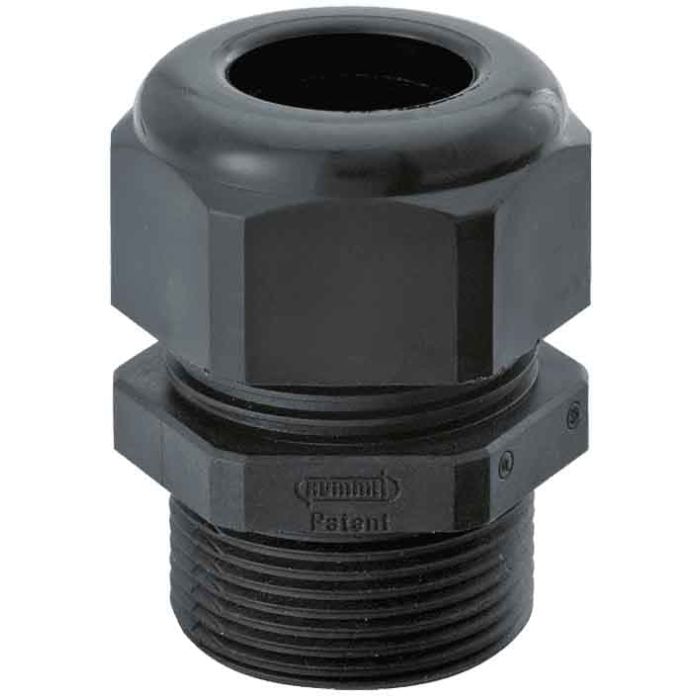

Cable gland made of polyamide
Cable gland made of polyamide Protection class - IP 68 – 10 bar, IP 69 K with additional o-ring. Version - long. Seal - NBR
In stock
| Attribute | Value |
|---|---|
| Product Brand Name | 1219160130 |
| Video URL | https://youtu.be/TL8yBdE8RXU |
| Colour | black |
| Weight (kg) | 0.00928 |
| Further information | With additional pre-assembled O-Ring upon request, Other sealing material e.g. Silicone upon request |
| Customs tariff number | 39269097 |
| EAN code | 4033878413098 |
| ETIM 7 | EC000441 |
| Packaging Unit | 50 |
| Height (mm) | 25 |
| Certificates | DNV-GL, UR, CSA, VDE, CE, ULF1, Bahnzulassung, cUR |
| Version | long |
| External thread (AG) | M16 x 1,5 |
| Cable diameter (mm) | 5 – 10 |
| Wrench size SW1 / SW2 (mm) | 22/22 |
| Protection class | IP 68 – 10 bar, IP 69 K with additional o-ring |
| Material | Polyamide V0 according to UL 94 |
| Seal | NBR |
| Thread length (mm) | 15 |
| RAL | 9005 |
| Variant | Metric-long |
| Tightening torque [Nm] | 3 |
| Wrench size 1 (SW1) [mm] | 22 |
| Wrench size (SW) [mm] | 22 |
| NEMA type rating | 4, 4X, 6 |
| Norms | RoHS |
| Minimum cable diameter (mm) | 0 - 10 |
| Maximum cable diameter (mm) | 0 - 10 |
| Temperature Range | -40°C to +100°C |
