Hummel

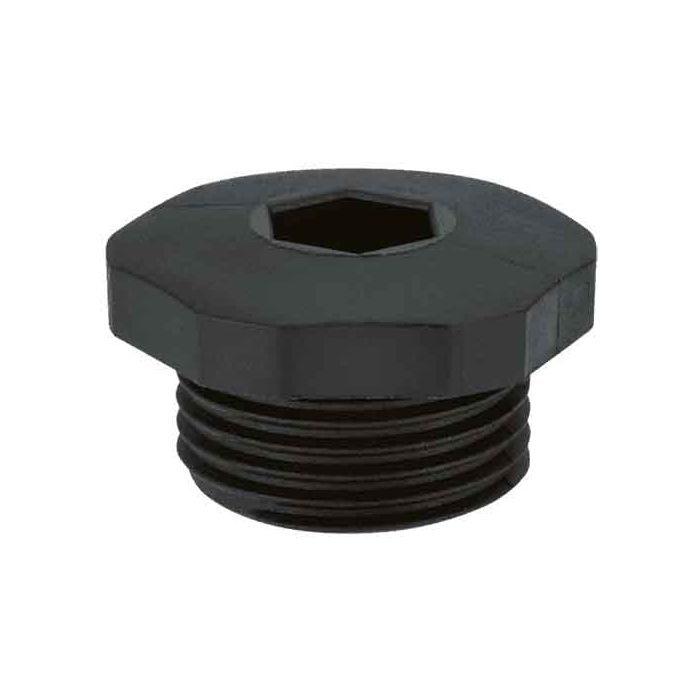

Plug made of polyamide with thread
Plug made of polyamide with thread from Hummel. Metric. Protection class IP 54 - -20°C to +80°C Black
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1255120150 |
| Manufacturer | Hummel |
| Colour | Black |
| Weight (kg) | 0.00144 |
| Customs tariff number | 39269097 |
| EAN code | 4033878414408 |
| ETIM 7 | EC000032 |
| Packaging Unit | 100 |
| Height (mm) | 13.0000 |
| Certificates | DNV-GL |
| RoHS | RoHS |
| External thread (AG) | M12 x 1.5 |
| Protection class | IP 54 |
| Material | Polyamide, fiber reinforced |
| Thread length (mm) | 8.5 |
| RAL | 9005.0000 |
| Tightening torque [Nm] | 1.5 |
| Wrench size 1 (SW1) [mm] | 15.0000 |
| Wrench size (SW) [mm] | 15.0000 |
| Allen Key | 6.0000 |
| Temperature Range | -20°C to +80°C |
