1.292.3801.71
1.292.3801.71
Hummel

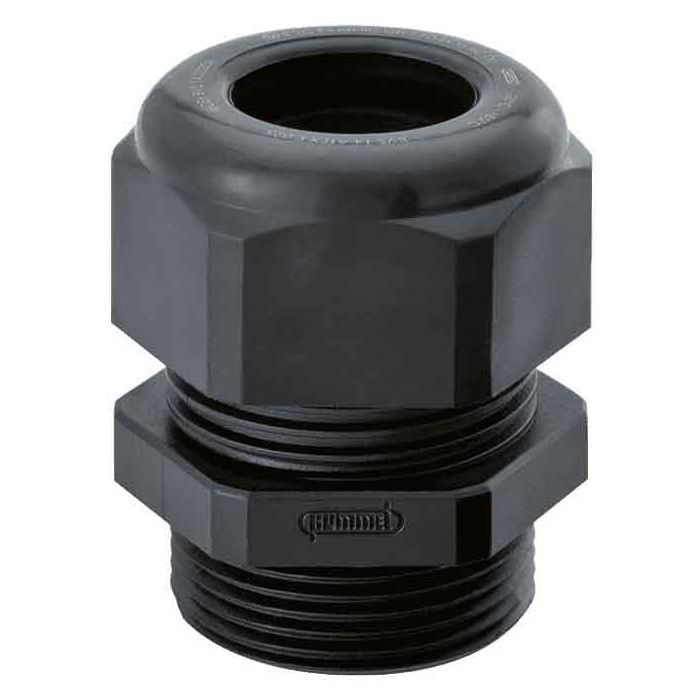

Cable gland made of glass fibre reinforced polyamide for hazardous areas
Cable gland made of glass fibre reinforced polyamide for hazardous areas Protection class - IP 68 – 10 bar. Version - short. Seal - NBR
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 1292380171 |
| Colour | black |
| Weight (kg) | 0.0086 |
| Customs tariff number | 39269097 |
| EAN code | 4033878416518 |
| ETIM 7 | EC000441 |
| Packaging Unit | 50 |
| Height (mm) | 22 |
| Certificates | INMETRO, ATEX, IECEx, cCSAus, EAC, CE |
| Version | short |
| External thread (AG) | NPT 3/8" |
| Material seals / O-rings | NBR |
| Cable diameter (mm) | 3 – 6 |
| Wrench size SW1 / SW2 (mm) | 19/22 |
| Protection class | IP 68 – 10 bar |
| Material | Polyamide, fiber reinforced |
| Seal | NBR |
| Thread length (mm) | 15 |
| RAL | 9005 |
| Variant | NPT |
| Tightening torque [Nm] | 2 |
| Wrench size 1 (SW1) [mm] | 19 |
| Wrench size (SW) [mm] | 22 |
| Ex-protection level | Class I Div 2 Groups A,B,C,D, Class II Div 1 Groups E,F,G , II 1D Ex ta IIIC Da, II 2G Ex eb IIC Gb |
| Norms | RoHS |
| Minimum cable diameter (mm) | 0 - 10 |
| Maximum cable diameter (mm) | 0 - 10 |
| Temperature Range | -20°C to +85°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
