Hummel

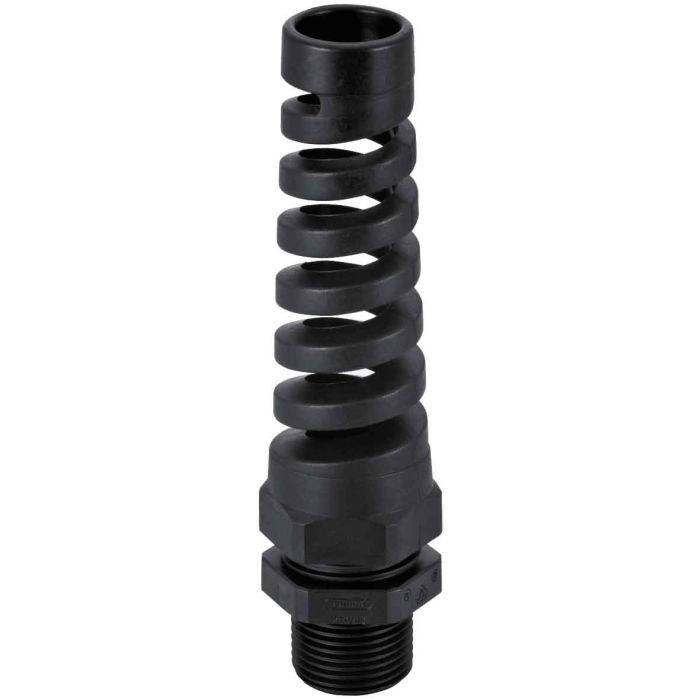

Cable gland made of polyamide with bend protection
Cable gland made of polyamide with bend protection Protection class - IP 68 – 10 bar, IP 69 K with additional o-ring. Version - long. Seal - NBR
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1293070160 |
| Colour | black |
| Weight (kg) | 0.0053 |
| Further information | With additional pre-assembled O-Ring upon request, Other sealing material e.g. Silicone upon request |
| Customs tariff number | 39269097 |
| EAN code | 4033878416921 |
| ETIM 7 | EC000441 |
| Packaging Unit | 50 |
| Height (mm) | 54.0000 |
| Certificates | UR, CSA, DNV-GL, ULF1, cUR, CE |
| Version | long |
| External thread (AG) | PG 7 |
| Cable diameter (mm) | 3 – 6.5 |
| Wrench size SW1 / SW2 (mm) | 15/15 |
| Protection class | IP 68 – 10 bar, IP 69 K with additional o-ring |
| Material | Polyamide |
| Seal | NBR |
| Thread length (mm) | 15.0000 |
| RAL | 9005.0000 |
| Variant | PG.-long |
| Tightening torque [Nm] | 1.5 |
| Wrench size 1 (SW1) [mm] | 15.0000 |
| Wrench size (SW) [mm] | 15.0000 |
| d (mm) | 7.0000 |
| Norms | RoHS |
| Minimum cable diameter (mm) | 0 - 10 |
| Maximum cable diameter (mm) | 0 - 10 |
| Temperature Range | -40°C to +100°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
