1.293.1301.14
1.293.1301.14
Hummel

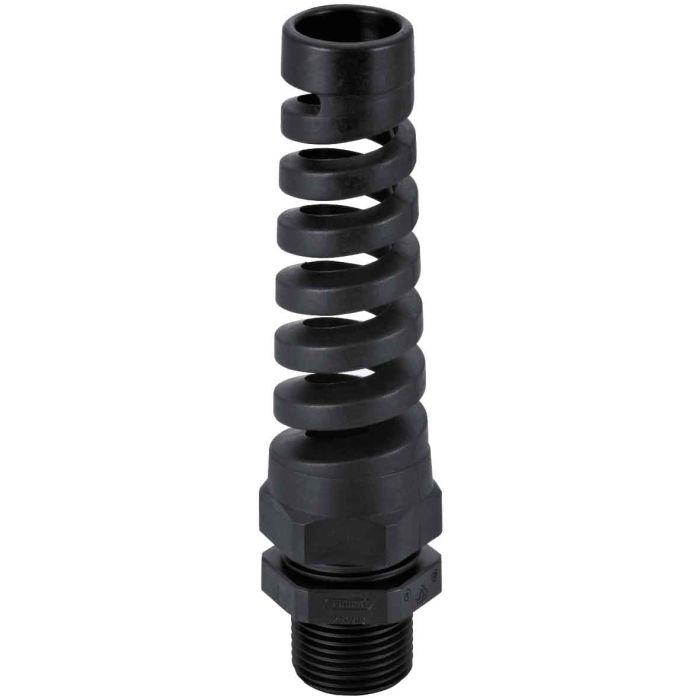

Cable gland made of polyamide with bend protection
Cable gland made of polyamide with bend protection Protection class - IP 68 – 10 bar, IP 69 K with additional o-ring. Version - short. Seal - NBR
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 1293130114 |
| Colour | black |
| Weight (kg) | 0.01781 |
| Further information | With additional pre-assembled O-Ring upon request, Other sealing material e.g. Silicone upon request |
| Customs tariff number | 39269097 |
| EAN code | 4033878417300 |
| ETIM 7 | EC000441 |
| Packaging Unit | 50 |
| Height (mm) | 90 |
| Certificates | UL, CSA, DNV-GL, ULF1, cUL, CE |
| Version | short |
| External thread (AG) | PG 13,5 |
| Cable diameter (mm) | 6 – 12 |
| Wrench size SW1 / SW2 (mm) | 24/24 |
| Protection class | IP 68 – 10 bar, IP 69 K with additional o-ring |
| Material | Polyamide |
| Seal | NBR |
| Thread length (mm) | 9 |
| RAL | 9005 |
| Variant | PG |
| Tightening torque [Nm] | 4.5 |
| Wrench size 1 (SW1) [mm] | 24 |
| Wrench size (SW) [mm] | 24 |
| d (mm) | 13 |
| Norms | RoHS |
| Minimum cable diameter (mm) | 0 - 10 |
| Maximum cable diameter (mm) | 11 - 20 |
| Temperature Range | -40°C to +100°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
