1.296.1301.11
1.296.1301.11
Hummel

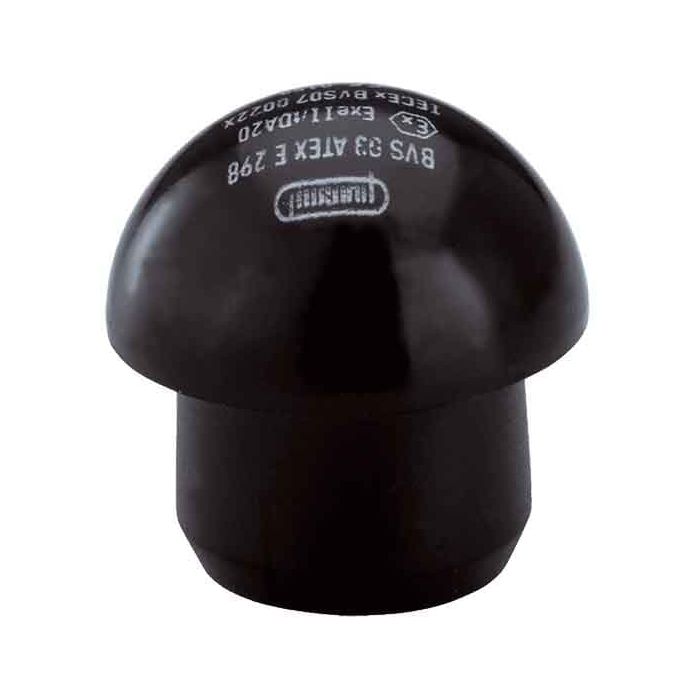

Plug made of polyamide without thread for hazardous areas
Plug made of polyamide without thread for hazardous areas from Hummel. . -40°C to +95°C Black
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1296130111 |
| Manufacturer | Hummel |
| Colour | Black |
| Weight (kg) | 0.00233 |
| Customs tariff number | 40169300 |
| EAN code | 4033878418048 |
| ETIM 7 | EC000032 |
| Packaging Unit | 50 |
| Height (mm) | 18.0000 |
| Certificates | EAC, INMETRO, ATEX, IECEx, CE, DNV-GL |
| RoHS | RoHS |
| Material | Elastomer |
| RAL | 9005.0000 |
| d (mm) | 11.8 |
| h (mm) | 8.0000 |
| suitable for (AG) | PG 13,5 |
| suitable for (AG 2) | M 20 x 1,5 |
| suitable for (AG 3) | NPT 1/2" |
| Ex-protection level | II 1D Ex ta IIIC Da, II 2G Ex e IIC Gb |
| Temperature Range | -40°C to +95°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
