1.297.0701.11
1.297.0701.11
Hummel

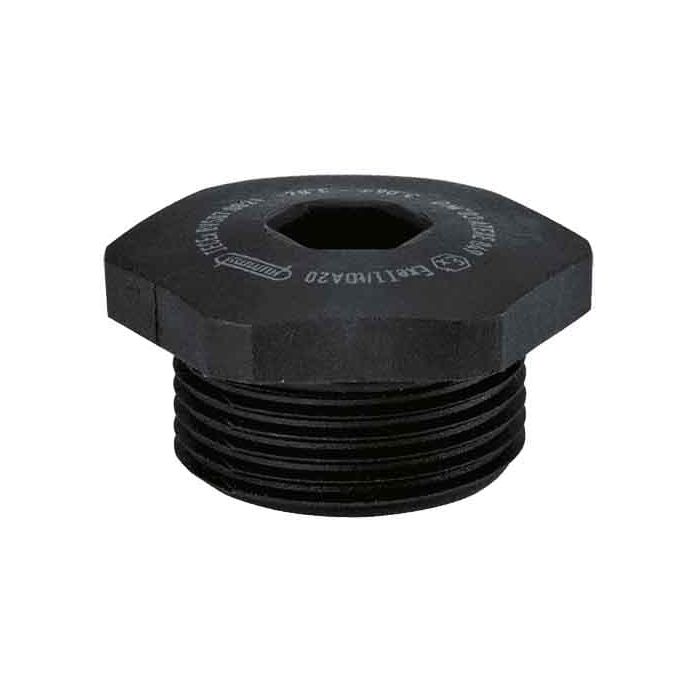

Plug made of polyamide with thread for hazardous areas
Plug made of polyamide with thread for hazardous areas from Hummel. PG. Protection class IP 68 – 10 bar, IP 69 K - -20°C to +90°C Black
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1297070111 |
| Manufacturer | Hummel |
| Colour | Black |
| Weight (kg) | 0.00172 |
| Customs tariff number | 39269097 |
| EAN code | 4033878418178 |
| ETIM 7 | EC000032 |
| Packaging Unit | 100 |
| Height (mm) | 13.0000 |
| Certificates | ATEX, INMETRO, IECEx, CE, DNV-GL, EAC |
| RoHS | RoHS |
| External thread (AG) | PG 7 |
| Material seals / O-rings | NBR |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | Polyamide, fiber reinforced |
| Thread length (mm) | 8.5 |
| RAL | 9005.0000 |
| Tightening torque [Nm] | 1.5 |
| Wrench size 1 (SW1) [mm] | 15.0000 |
| Wrench size (SW) [mm] | 15.0000 |
| Allen Key | 6.0000 |
| Ex-protection level | II 1D Ex ta IIIC Da, II 2G Ex e IIC Gb |
| Temperature Range | -20°C to +90°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
