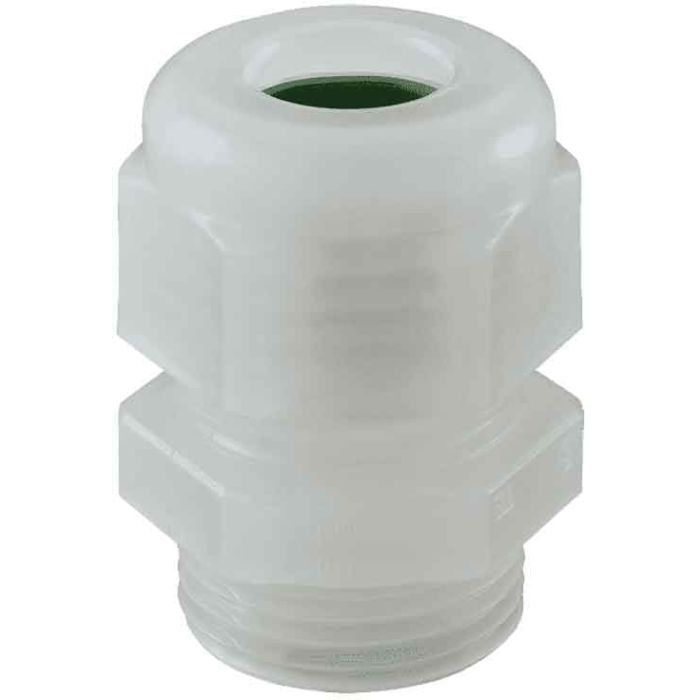

Hummel 1.299.1200.50 Cable gland made of polyamide

1.299.1200.50

1.299.1200.50

Hummel

Cable gland made of polyamide

Cable gland made of polyamide Protection class - IP 68 – 10 bar, IP 69 K with additional o-ring. Version - short. Seal - FKM
In stock
£26.88
More Information
Attribute Value
Product Brand Name 1299120050
Video URL https://youtu.be/TL8yBdE8RXU
Colour natural
Weight (kg) 0.00493
Further information With additional pre-assembled O-Ring upon request, Other sealing materials on request
Customs tariff number 39269097
EAN code 4033878418413
ETIM 7 EC000441
Packaging Unit 50
Height (mm) 21
Certificates DNV-GL, UR, CSA, VDE, CE, cUR
Version short
External thread (AG) M12 x 1,5
Cable diameter (mm) 3 – 6.5
Wrench size SW1 / SW2 (mm) 15/15
Protection class IP 68 – 10 bar, IP 69 K with additional o-ring
Material PVDF V0 according to UL 94
Seal FKM
Thread length (mm) 8
Variant Metric
Tightening torque [Nm] 1.5
Wrench size 1 (SW1) [mm] 15
Wrench size (SW) [mm] 15
NEMA type rating 4, 4X, 6
Norms RoHS
Minimum cable diameter (mm) 0 - 10
Maximum cable diameter (mm) 0 - 10
Temperature Range -35°C to +150°C
More Information
Attribute Value
Data Sheet Click here to view
