1.299.2000.51
1.299.2000.51
Hummel

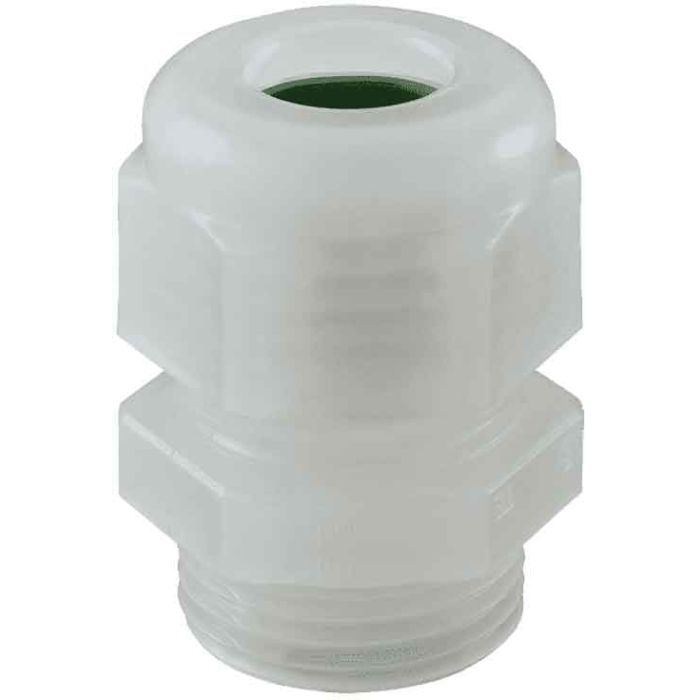

Cable gland made of polyamide
Cable gland made of polyamide Protection class - IP 68 – 10 bar, IP 69 K with additional o-ring. Version - short. Seal - FKM
In stock
Attribute | Value |
---|---|
Product Brand Name | 1299200051 |
Video URL | https://youtu.be/TL8yBdE8RXU |
Colour | natural |
Weight (kg) | 0.0156 |
Further information | With additional pre-assembled O-Ring upon request, Other sealing materials on request |
Customs tariff number | 39269097 |
EAN code | 4033878418543 |
ETIM 7 | EC000441 |
Packaging Unit | 50 |
Height (mm) | 27 |
Certificates | DNV-GL, UL, CSA, VDE, CE, cUL |
Version | short |
External thread (AG) | M20 x 1,5 |
Cable diameter (mm) | 5 – 9 |
Wrench size SW1 / SW2 (mm) | 24/24 |
Protection class | IP 68 – 10 bar, IP 69 K with additional o-ring |
Material | PVDF V0 according to UL 94 |
Seal | FKM |
Thread length (mm) | 9 |
Variant | Metric |
Tightening torque [Nm] | 3 |
Wrench size 1 (SW1) [mm] | 24 |
Wrench size (SW) [mm] | 24 |
NEMA type rating | 4, 4X, 6 |
Norms | RoHS |
Minimum cable diameter (mm) | 0 - 10 |
Maximum cable diameter (mm) | 0 - 10 |
Temperature Range | -35°C to +150°C |
Attribute | Value |
---|---|
Data Sheet | Click here to view |
