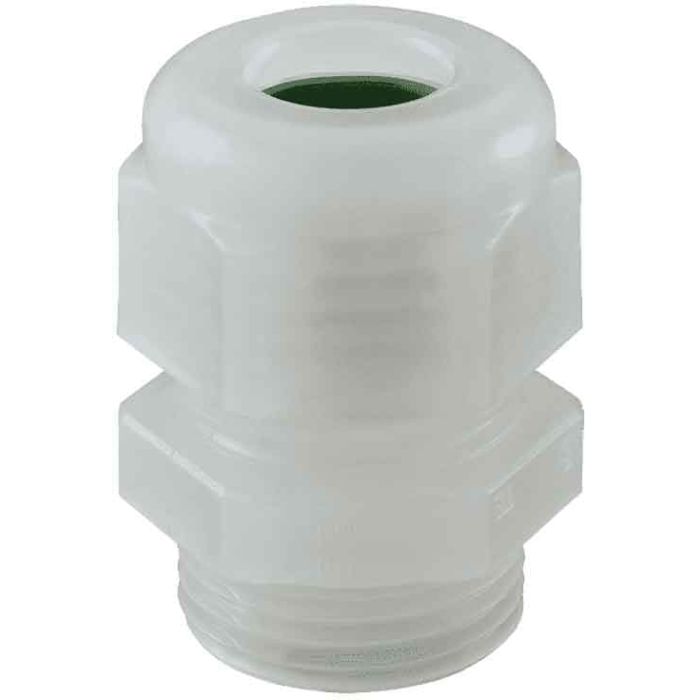

Hummel 1.299.2900.14 Cable gland made of polyamide

1.299.2900.14

1.299.2900.14

Hummel

Cable gland made of polyamide

Cable gland made of polyamide Protection class - IP 68 – 10 bar, IP 69 K with additional o-ring. Version - short. Seal - FKM
In stock
£3.80
More Information
Attribute Value
Product Brand Name 1299290014
Video URL https://youtu.be/TL8yBdE8RXU
Colour natural
Weight (kg) 0.05981
Further information With additional pre-assembled O-Ring upon request, Other sealing materials on request
Customs tariff number 39269097
EAN code 4033878418598
ETIM 7 EC000441
Packaging Unit 25
Height (mm) 39
Certificates DNV-GL, UL, CSA, cUL, CE
Version short
External thread (AG) PG 29
Cable diameter (mm) 18 – 25
Wrench size SW1 / SW2 (mm) 42/42
Protection class IP 68 – 10 bar, IP 69 K with additional o-ring
Material PVDF V0 according to UL 94
Seal FKM
Thread length (mm) 11
Variant PG
Tightening torque [Nm] 6
Wrench size 1 (SW1) [mm] 42
Wrench size (SW) [mm] 42
NEMA type rating 4, 4X, 6
Norms RoHS
Minimum cable diameter (mm) 11 - 20
Maximum cable diameter (mm) 21 - 30
Temperature Range -35°C to +150°C
