1.306.4200.05
1.306.4200.05
Hummel

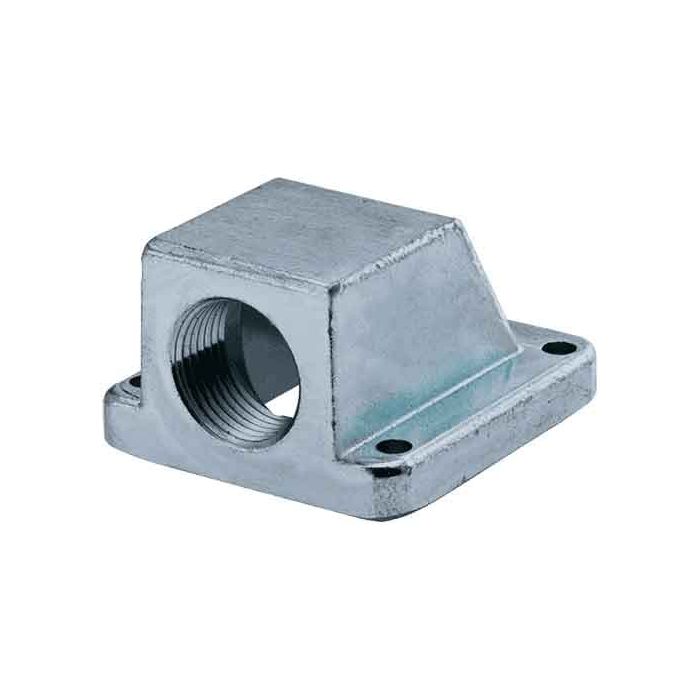

Flange angle made of zinc die casting
Flange angle made of zinc die casting from Hummel. PG. Protection class IP 65 - -20°C to +95°C
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1306420005 |
| Manufacturer | Hummel |
| Weight (kg) | 1.54 |
| Customs tariff number | 79070000 |
| EAN code | 4033878418901 |
| ETIM 7 | EC000441 |
| Packaging Unit | 2 |
| Height (mm) | 74.0000 |
| RoHS | RoHS |
| Material seals / O-rings | NBR |
| Protection class | IP 65 |
| Material | Die Casting |
| Internal thread (IG) | PG 42 |
| Mounting hole diameter (Ø) [mm] | 6.5 |
| C (mm) | 114.0000 |
| E (mm) | 84.0000 |
| Temperature Range | -20°C to +95°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
