Hummel

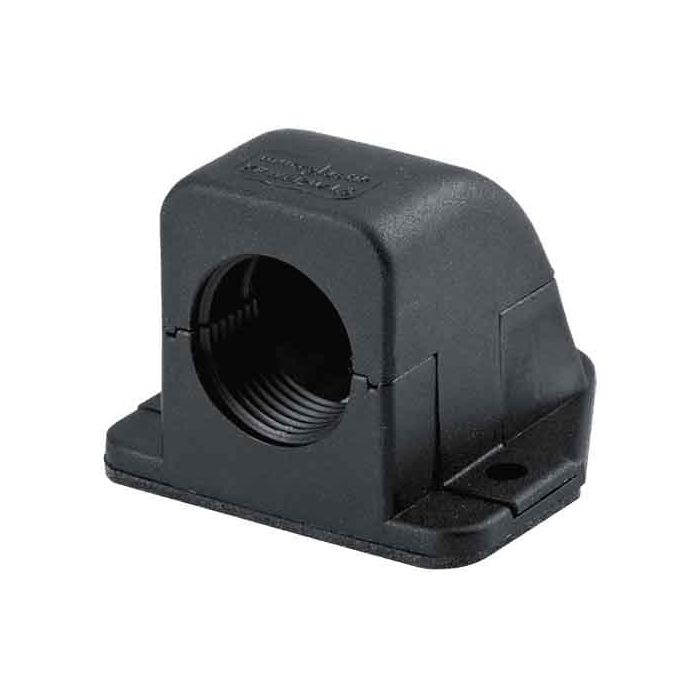

Foldable flange angle made of polyamide
Foldable flange angle made of polyamide from Hummel. PG. Protection class IP 65 - -40°C to +110°C Black
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1312210111 |
| Manufacturer | Hummel |
| Colour | Black |
| Weight (kg) | 0.0039 |
| Customs tariff number | 39269097 |
| EAN code | 4033878419144 |
| ETIM 7 | EC000441 |
| Packaging Unit | 10 |
| Height (mm) | 44.0000 |
| RoHS | RoHS |
| Protection class | IP 65 |
| Material | Polyamide |
| Seal | NBR |
| RAL | 9005.0000 |
| Internal thread (IG) | PG 21 |
| Mounting hole diameter (Ø) [mm] | 6.0000 |
| A (mm) | 69.0000 |
| B (mm) | 65.0000 |
| C (mm) | 51.5 |
| F (mm) | 42.0000 |
| Type | A |
| Temperature Range | -40°C to +110°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
