Hummel 1.312.2501.50 Foldable flange angle made of polyamide

1.312.2501.50

1.312.2501.50

Hummel

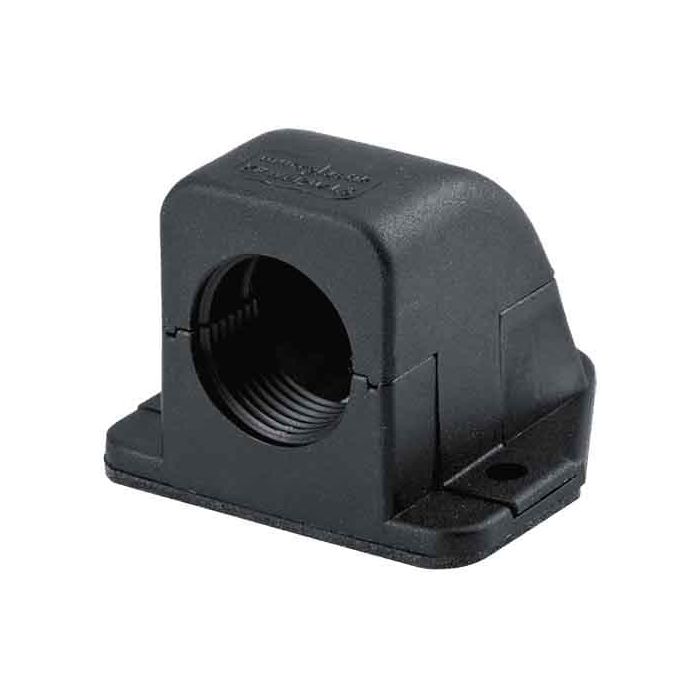

Foldable flange angle made of polyamide

Foldable flange angle made of polyamide from Hummel. Metric. Protection class IP 65 - -40°C to +110°C Black
In stock
£7.17
More Information
Attribute Value
Product Brand Name 1312250150
Manufacturer Hummel
Colour Black
Weight (kg) 0.0039
Customs tariff number 39269097
EAN code 4033878419175
ETIM 7 EC000441
Packaging Unit 10
Height (mm) 44
Protection class IP 65
Material Polyamide
Seal NBR
RAL 9005
Internal thread (IG) M25 x 1.5
Mounting hole diameter (Ø) [mm] 6
A (mm) 69
B (mm) 65
C (mm) 51.5
F (mm) 42
Type A
Temperature Range -40°C to +110°C
RoHS RoHS
More Information
Attribute Value
Data Sheet Click here to view
