Hummel

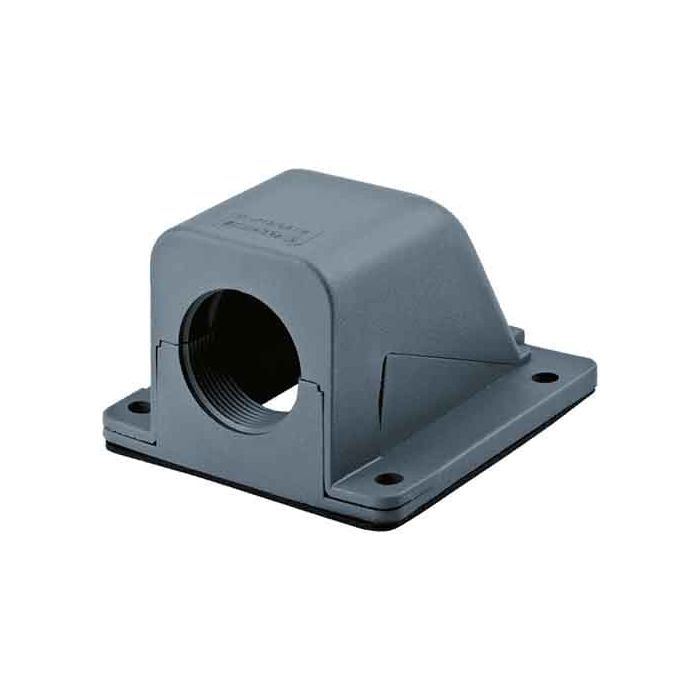

Foldable flange angle made of polyamide
Foldable flange angle made of polyamide from Hummel. Metric. Protection class IP 65 - -40°C to +110°C Grey
In stock
| Attribute | Value |
|---|---|
| Product Brand Name | 1312320050 |
| Manufacturer | Hummel |
| Colour | Grey |
| Weight (kg) | 0.18 |
| Customs tariff number | 39269097 |
| EAN code | 4033878419229 |
| ETIM 7 | EC000441 |
| Packaging Unit | 10 |
| Height (mm) | 55 |
| Protection class | IP 65 |
| Material | Polyamide |
| Seal | NBR |
| RAL | 7011 |
| Internal thread (IG) | M32 x 1.5 |
| Mounting hole diameter (Ø) [mm] | 6.5 |
| A (mm) | 90 |
| B (mm) | 78 |
| C (mm) | 64.5 |
| F (mm) | 64.5 |
| Type | B |
| Temperature Range | -40°C to +110°C |
| RoHS | RoHS |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
