Hummel 1.312.3601.11 Foldable flange angle made of polyamide

1.312.3601.11

1.312.3601.11

Hummel

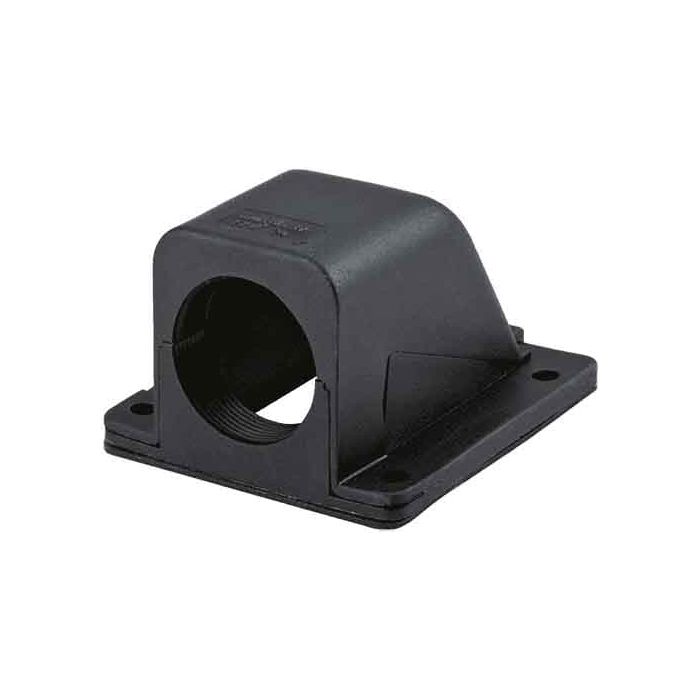

Foldable flange angle made of polyamide

Foldable flange angle made of polyamide from Hummel. PG. Protection class IP 65 - -40°C to +110°C Black
In stock
£14.54
More Information
Attribute Value
Product Brand Name 1312360111
Manufacturer Hummel
Colour Black
Weight (kg) 0.017
Customs tariff number 39269097
EAN code 4033878419267
ETIM 7 EC000441
Packaging Unit 10
Height (mm) 66
Protection class IP 65
Material Polyamide
Seal NBR
RAL 9005
Internal thread (IG) PG 36
Mounting hole diameter (Ø) [mm] 6.5
A (mm) 99
B (mm) 94
C (mm) 79.5
F (mm) 79.5
Type B
Temperature Range -40°C to +110°C
RoHS RoHS
More Information
Attribute Value
Data Sheet Click here to view
