Hummel

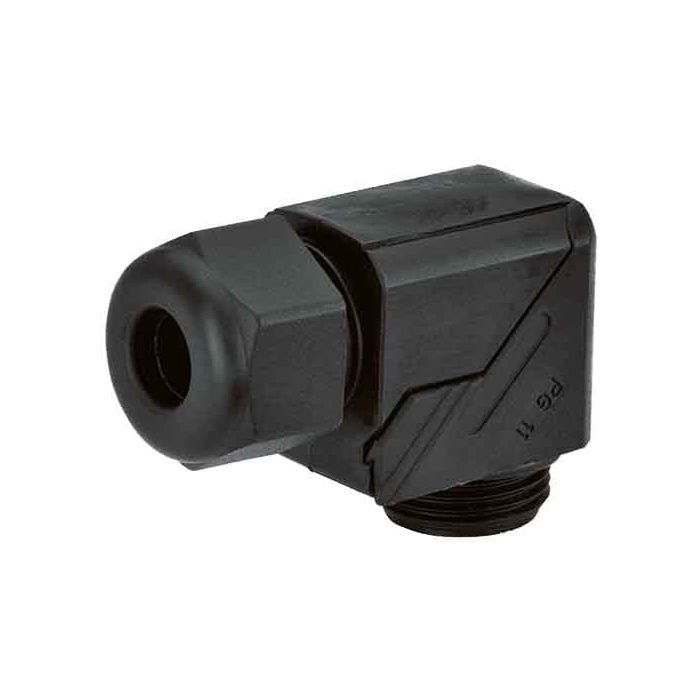

Foldable angle cable gland made of polyamide
Foldable angle cable gland made of polyamide Protection class - IP 68. Version - short. Seal - NBR
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 1313290114 |
| Colour | black |
| Length (mm) | 91 |
| Weight (kg) | 0.1277 |
| Further information | Other sealing material e.g. Silicone upon request |
| Customs tariff number | 39269097 |
| EAN code | 4033878419823 |
| ETIM 7 | EC000441 |
| Packaging Unit | 5 |
| Height (mm) | 51.5 |
| Certificates | DNV-GL, CSA, UL, cUL, CE |
| Version | short |
| External thread (AG) | PG 29 |
| Material seals / O-rings | NBR |
| Cable diameter (mm) | 18 – 25 |
| Wrench size SW1 / SW2 (mm) | 42/42 |
| Protection class | IP 68 |
| Material | Polyamide |
| Seal | NBR |
| Thread length (mm) | 11 |
| RAL | 9005 |
| Variant | PG |
| Tightening torque [Nm] | 9 |
| Wrench size 1 (SW1) [mm] | 42 |
| Wrench size (SW) [mm] | 42 |
| Norms | RoHS |
| Minimum cable diameter (mm) | 11 - 20 |
| Maximum cable diameter (mm) | 21 - 30 |
| Temperature Range | -40°C to +100°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
