1.313.3400.71
1.313.3400.71
Hummel

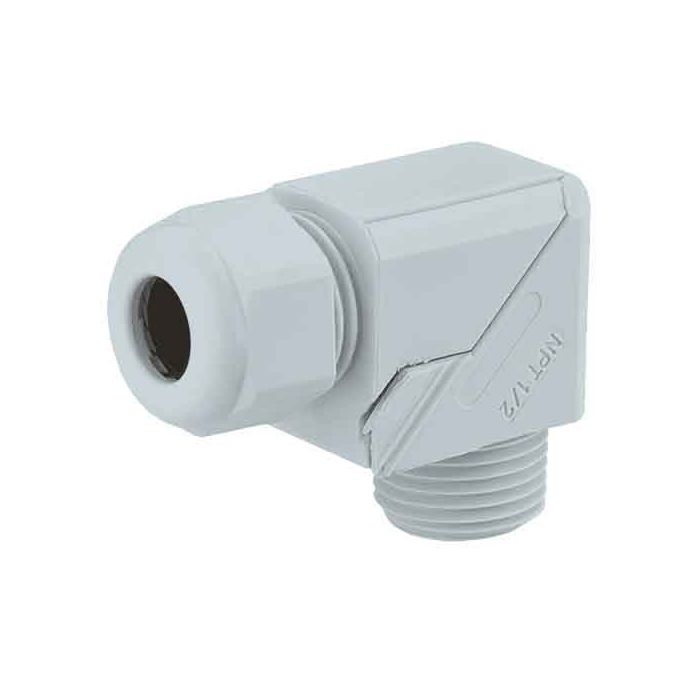

Foldable angle cable gland made of polyamide
Foldable angle cable gland made of polyamide Protection class - IP 68. Version - short. Seal - NBR
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 1313340071 |
| Colour | grey |
| Length (mm) | 73 |
| Weight (kg) | 0.06847 |
| Further information | Other sealing material e.g. Silicone upon request |
| Customs tariff number | 39269097 |
| EAN code | 4033878419892 |
| ETIM 7 | EC000441 |
| Packaging Unit | 20 |
| Height (mm) | 40 |
| Certificates | DNV-GL, CSA, UL, cUL, CE |
| Version | short |
| External thread (AG) | NPT 3/4" |
| Material seals / O-rings | NBR |
| Cable diameter (mm) | 9 – 16 |
| Wrench size SW1 / SW2 (mm) | 33/33 |
| Protection class | IP 68 |
| Material | Polyamide |
| Seal | NBR |
| Thread length (mm) | 13 |
| RAL | 7035 |
| Variant | NPT |
| Tightening torque [Nm] | 6 |
| Wrench size 1 (SW1) [mm] | 33 |
| Wrench size (SW) [mm] | 33 |
| Norms | RoHS |
| Minimum cable diameter (mm) | 0 - 10 |
| Maximum cable diameter (mm) | 11 - 20 |
| Temperature Range | -40°C to +100°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
