Hummel

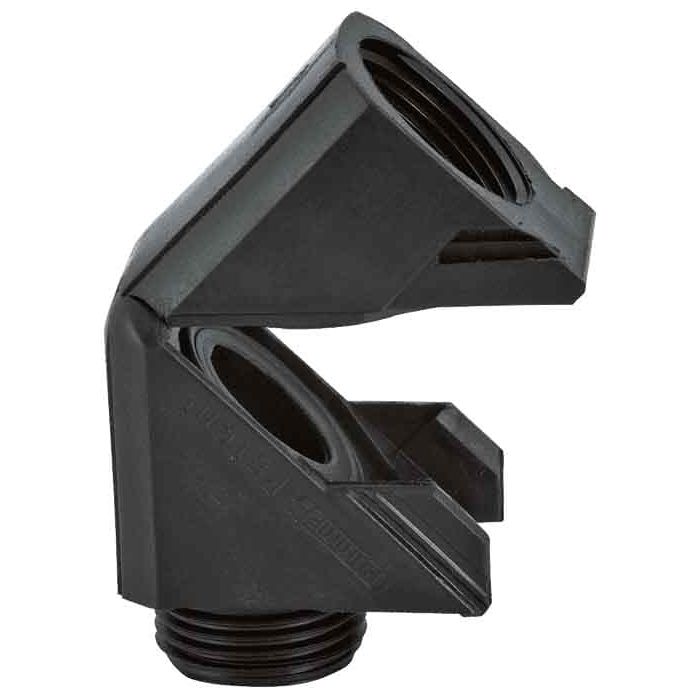

Snap elbow made of polyamide

Snap elbow made of polyamide from Hummel. Metric. Protection class IP 68 - -20°C to +80°C Black
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Product Brand Name 1316160150
Manufacturer Hummel
Colour Black
Length (mm) 28.5
Weight (kg) 0.00986
Customs tariff number 39269097
EAN code 4033878420775
ETIM 7 EC000441
Packaging Unit 25
Height (mm) 23.0000
RoHS RoHS
External thread (AG) M16 x 1.5
Material seals / O-rings NBR
Protection class IP 68
Material Polyamide
Thread length (mm) 8.0000
RAL 9005.0000
Internal thread (IG) M16 x 1.5
Wrench size 1 (SW1) [mm] 19.0000
Wrench size (SW) [mm] 19.0000
Temperature Range -20°C to +80°C
