Hummel

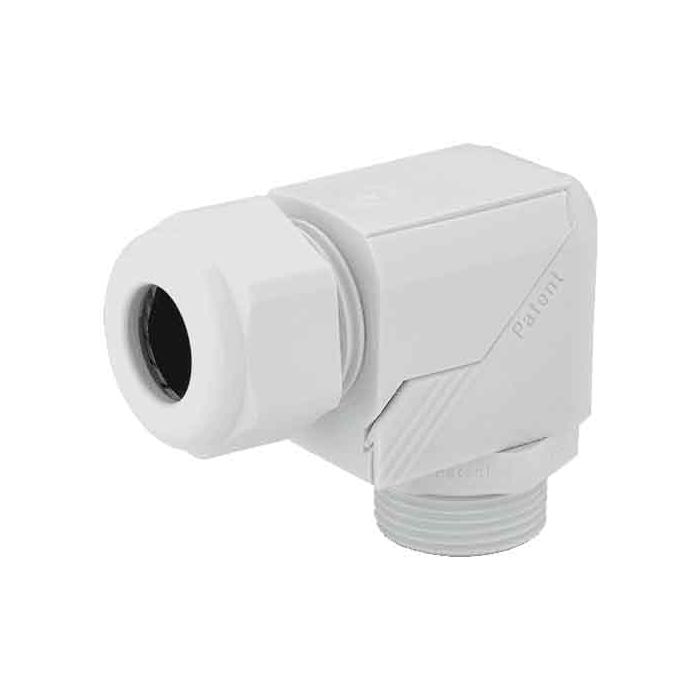

Foldable angle cable gland made of polyamide
Foldable angle cable gland made of polyamide Protection class - IP 68. Version - short. Seal - NBR
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1317130014 |
| Colour | grey |
| Length (mm) | 57.0000 |
| Weight (kg) | 0.03812 |
| Further information | Other sealing material e.g. Silicone upon request, Version rotatable |
| Customs tariff number | 39269097 |
| EAN code | 4033878420928 |
| ETIM 7 | EC000441 |
| Packaging Unit | 25 |
| Height (mm) | 35.5 |
| Certificates | CE |
| Version | short |
| External thread (AG) | PG 13,5 |
| Material seals / O-rings | NBR |
| Cable diameter (mm) | 6 – 12 |
| Wrench size SW1 / SW2 (mm) | 24/24 |
| Protection class | IP 68 |
| Material | Polyamide |
| Seal | NBR |
| Thread length (mm) | 9.0000 |
| RAL | 7035.0000 |
| Variant | PG |
| Tightening torque [Nm] | 4.0000 |
| Wrench size 1 (SW1) [mm] | 24.0000 |
| Wrench size (SW) [mm] | 24.0000 |
| Norms | RoHS |
| Minimum cable diameter (mm) | 0 - 10 |
| Maximum cable diameter (mm) | 11 - 20 |
| Temperature Range | -40°C to +100°C |
