Hummel

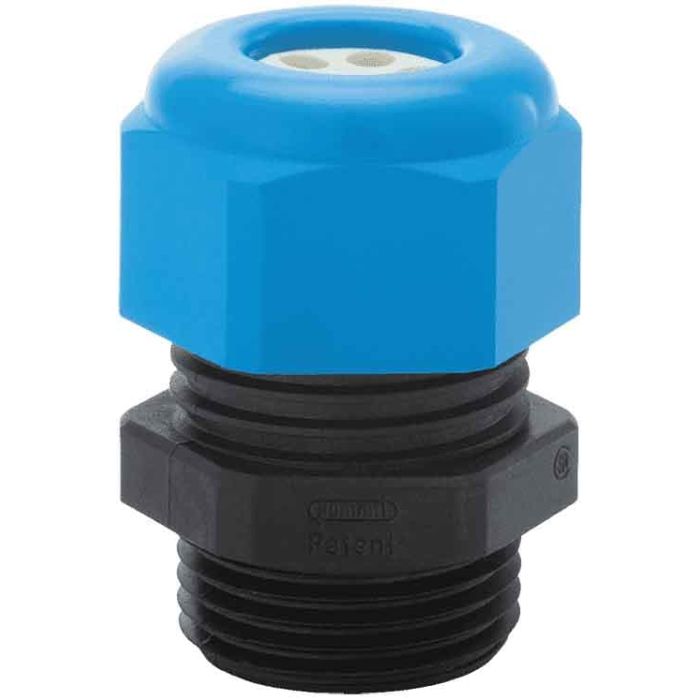

Cable gland made of glass fibre reinforced polyamide with multi cable sealing insert for hazardous areas
Cable gland made of glass fibre reinforced polyamide with multi cable sealing insert for hazardous areas Protection class - IP 68 – 10 bar. Version - short. Seal - Elastomer
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1581200352 |
| Colour | blue-black |
| Weight (kg) | 0.016 |
| Further information | Further seal inserts on request, Installation note: The cable diameter may be less than the drill diameter by 20%, but not more than 1 mm |
| Customs tariff number | 39269097 |
| EAN code | 4033878000113 |
| ETIM 7 | EC000441 |
| Packaging Unit | 50 |
| Height (mm) | 27.0000 |
| Certificates | INMETRO, ATEX, IECEx, cCSAus, EAC, CE |
| Version | short |
| External thread (AG) | M20 x 1,5 |
| Material seals / O-rings | NBR |
| Wrench size SW1 / SW2 (mm) | 24/24 |
| Protection class | IP 68 – 10 bar |
| Material | Polyamide, fiber reinforced |
| Seal | Elastomer |
| Thread length (mm) | 9.0000 |
| RAL | 5012.9005 |
| Variant | Metric |
| Number of holes x d | 2 x 5 |
| Tightening torque [Nm] | 4.5 |
| Wrench size 1 (SW1) [mm] | 24.0000 |
| Wrench size (SW) [mm] | 24.0000 |
| Ex-protection level | Class I Div 2 Groups A,B,C,D, Class II Div 1 Groups E,F,G , II 1D Ex ta IIIC Da, II 2G Ex eb IIC Gb |
| Norms | RoHS |
| Minimum cable diameter (mm) | 0 - 10 |
| Maximum cable diameter (mm) | 0 - 10 |
| Temperature Range | -20°C to +85°C |
