Hummel

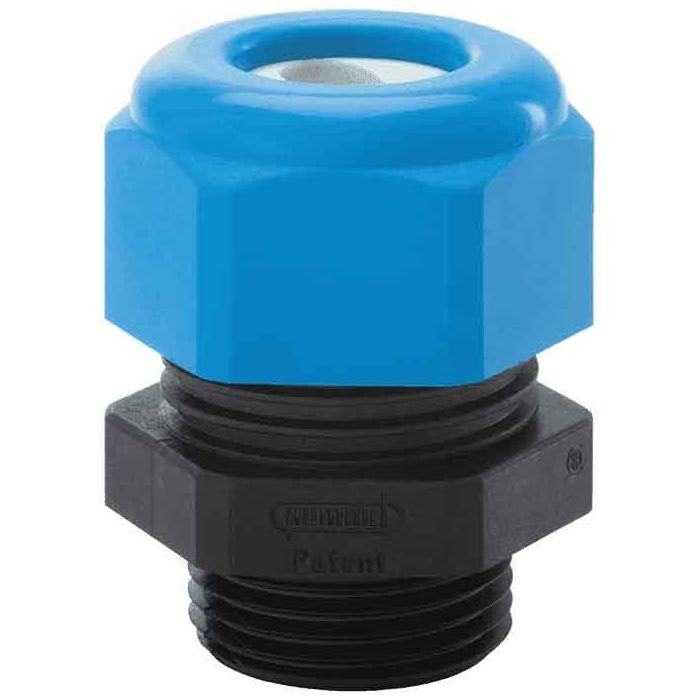

Cable gland made of glass fibre reinforced polyamide with flat cable sealing insert for hazardous areas
Cable gland made of glass fibre reinforced polyamide with flat cable sealing insert for hazardous areas Protection class - IP 68 – 10 bar. Version - short. Seal - Elastomer
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1582121772 |
| Colour | blue-black |
| Weight (kg) | 0.0155 |
| Further information | Further seal inserts on request, The cable must not exceed the specified clamping range by more than 1 mm in width and length. Geometries of cable and hole pattern must match (semicircular or straight). |
| Customs tariff number | 39269097 |
| EAN code | 4033878001950 |
| ETIM 7 | EC000441 |
| Packaging Unit | 50 |
| Height (mm) | 28.0000 |
| Certificates | INMETRO, ATEX, IECEx, cCSAus, EAC, CE |
| Version | short |
| External thread (AG) | NPT 1/2" |
| Material seals / O-rings | NBR |
| Wrench size SW1 / SW2 (mm) | 27/27 |
| Protection class | IP 68 – 10 bar |
| Material | Polyamide, fiber reinforced |
| Seal | Elastomer |
| Thread length (mm) | 13.0000 |
| RAL | 5012.9005 |
| Variant | NPT |
| Tightening torque [Nm] | 4.5 |
| Wrench size 1 (SW1) [mm] | 27.0000 |
| Wrench size (SW) [mm] | 27.0000 |
| Ex-protection level | Class I Div 2 Groups A,B,C,D, Class II Div 1 Groups E,F,G , II 1D Ex ta IIIC Da, II 2G Ex eb IIC Gb |
| B x H (mm) | 12 x 7 |
| Norms | RoHS |
| Minimum cable diameter (mm) | 0 - 10 |
| Maximum cable diameter (mm) | 0 - 10 |
| Temperature Range | -20°C to +85°C |
