Hummel

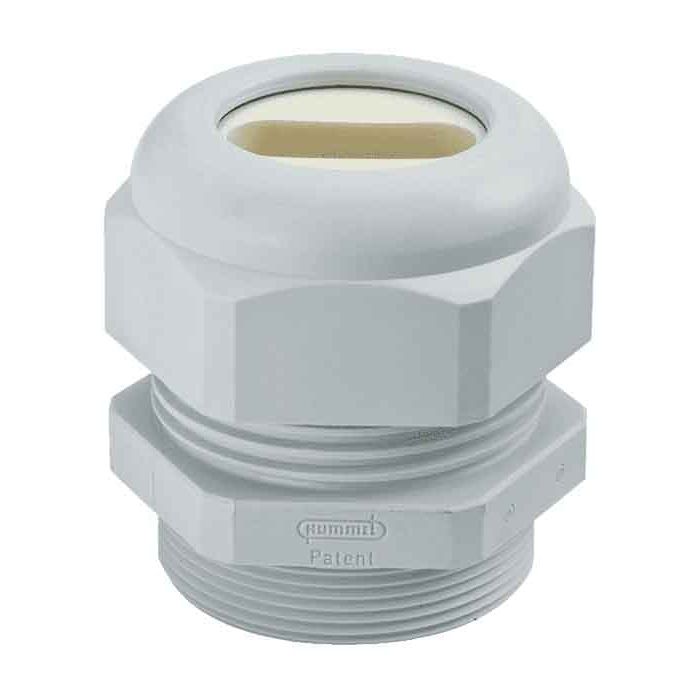

Cable gland made of polyamide with flat cable sealing insert
Cable gland made of polyamide with flat cable sealing insert Protection class - IP 65, IP 68 with additional O-ring. Version - short. Seal - Elastomer
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 1587121670 |
| Colour | grey |
| Weight (kg) | 0.01572 |
| Further information | With additional pre-assembled O-Ring upon request, Elongated threads on request, Further seal inserts on request |
| Customs tariff number | 39269097 |
| EAN code | 4033878005002 |
| ETIM 7 | EC000441 |
| Packaging Unit | 50 |
| Height (mm) | 28 |
| Certificates | DNV-GL, CE |
| Version | short |
| External thread (AG) | NPT 1/2" |
| Wrench size SW1 / SW2 (mm) | 27/27 |
| Protection class | IP 65, IP 68 with additional O-ring |
| Material | Polyamide V0 according to UL 94 |
| Seal | Elastomer |
| Thread length (mm) | 13 |
| RAL | 7035 |
| Variant | NPT |
| Tightening torque [Nm] | 4.5 |
| Wrench size 1 (SW1) [mm] | 27 |
| Wrench size (SW) [mm] | 27 |
| B x H (mm) | 11.5 x 5.5 |
| Norms | RoHS |
| Minimum cable diameter (mm) | 0 - 10 |
| Maximum cable diameter (mm) | 0 - 10 |
| Temperature Range | -40°C to +100°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
