1.590.0701.15
1.590.0701.15
Hummel

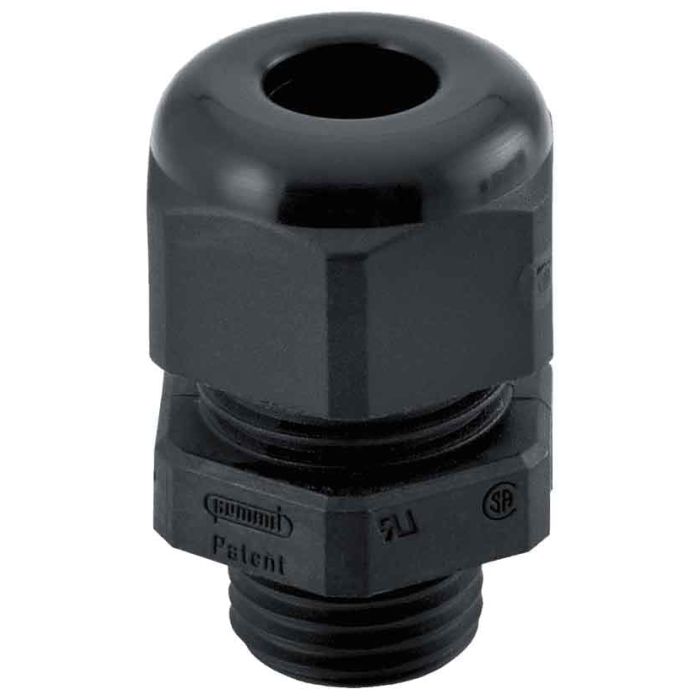

Cable gland made of polyamide with extension
Cable gland made of polyamide with extension Protection class - IP 68 – 10 bar, IP 69 K with additional o-ring. Version - short. Seal - NBR
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1590070115 |
| Colour | black |
| Weight (kg) | 0.00611 |
| Further information | With additional pre-assembled O-Ring upon request, Other sealing materials on request |
| Customs tariff number | 39269097 |
| EAN code | 4033878426944 |
| ETIM 7 | EC000441 |
| Packaging Unit | 50 |
| Height (mm) | 22.0000 |
| Certificates | DNV-GL, UR, CSA, Bahnzulassung, ULF1, cUR, CE |
| Version | short |
| External thread (AG) | PG 7 |
| Cable diameter (mm) | 2 – 6 |
| Wrench size SW1 / SW2 (mm) | 19/19 |
| Protection class | IP 68 – 10 bar, IP 69 K with additional o-ring |
| Material | Polyamide V0 according to UL 94 |
| Seal | NBR |
| Thread length (mm) | 8.0000 |
| RAL | 9005.0000 |
| Variant | PG |
| Tightening torque [Nm] | 2.0000 |
| Wrench size 1 (SW1) [mm] | 19.0000 |
| Wrench size (SW) [mm] | 19.0000 |
| d (mm) | 7.0000 |
| NEMA type rating | 4, 4X, 6 |
| Norms | RoHS |
| Minimum cable diameter (mm) | 0 - 10 |
| Maximum cable diameter (mm) | 0 - 10 |
| Type | KE |
| Temperature Range | -40°C to +100°C |
