Hummel

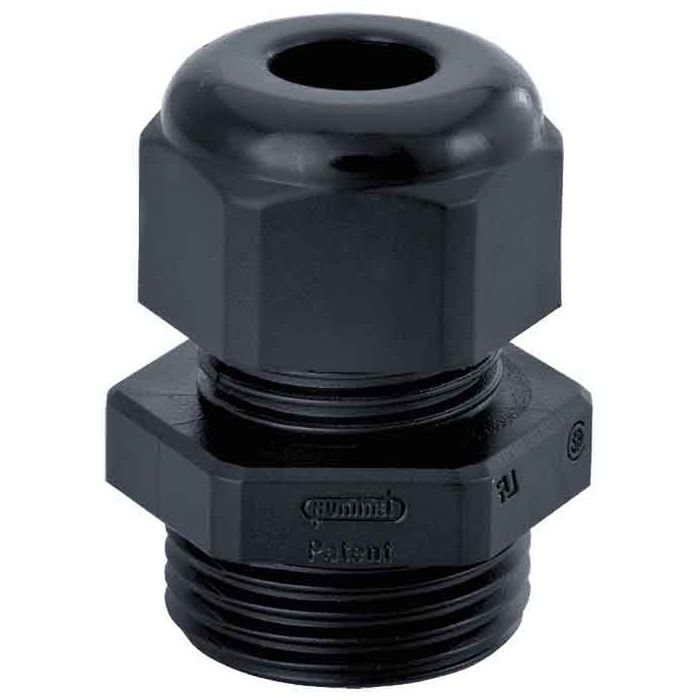

Cable gland made of polyamide with reduction
Cable gland made of polyamide with reduction Protection class - IP 68 – 10 bar, IP 69 K with additional o-ring. Version - short. Seal - NBR
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 1591160115 |
| Colour | black |
| Weight (kg) | 0.01213 |
| Further information | With additional pre-assembled O-Ring upon request, Other sealing materials on request |
| Customs tariff number | 39269097 |
| EAN code | 4033878427262 |
| ETIM 7 | EC000441 |
| Packaging Unit | 50 |
| Height (mm) | 27 |
| Certificates | UL, CSA, Bahnzulassung, ULF1, DNV-GL, cUL, CE |
| Version | short |
| External thread (AG) | PG 16 |
| Cable diameter (mm) | 5 – 9 |
| Wrench size SW1 / SW2 (mm) | 24/27 |
| Protection class | IP 68 – 10 bar, IP 69 K with additional o-ring |
| Material | Polyamide V0 according to UL 94 |
| Seal | NBR |
| Thread length (mm) | 10 |
| RAL | 9005 |
| Variant | PG |
| Tightening torque [Nm] | 3 |
| Wrench size 1 (SW1) [mm] | 24 |
| Wrench size (SW) [mm] | 27 |
| NEMA type rating | 4, 4X, 6 |
| Norms | RoHS |
| Minimum cable diameter (mm) | 0 - 10 |
| Maximum cable diameter (mm) | 0 - 10 |
| Type | KR |
| Temperature Range | -40°C to +100°C |
