1.597.1101.01
1.597.1101.01
Hummel

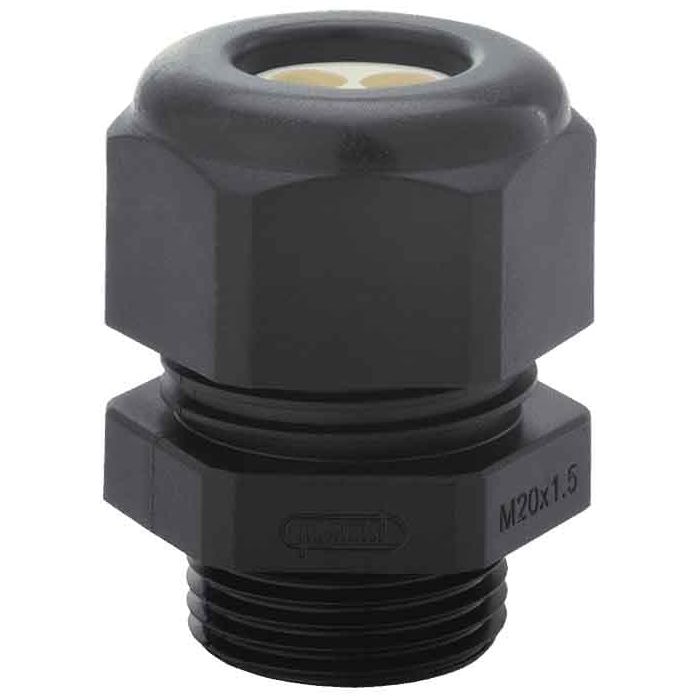

Cable gland made of polyamide with multi cable sealing insert
Cable gland made of polyamide with multi cable sealing insert Protection class - IP 65, IP 68 – 10 bar with ideal fit and additional o-ring. Version - short. Seal - Elastomer
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1597110101 |
| Colour | black |
| Weight (kg) | 0.00985 |
| Further information | With additional pre-assembled O-Ring upon request, Elongated threads on request, Further seal inserts on request |
| Customs tariff number | 39269097 |
| EAN code | 4033878005972 |
| ETIM 7 | EC000441 |
| Packaging Unit | 50 |
| Height (mm) | 25.0000 |
| Certificates | DNV-GL, UR, CSA, Bahnzulassung, cUR, ULF1, CE |
| Version | short |
| External thread (AG) | PG 11 |
| Wrench size SW1 / SW2 (mm) | 22/22 |
| Protection class | IP 65, IP 68 – 10 bar with ideal fit and additional o-ring |
| Material | Polyamide V0 according to UL 94 |
| Seal | Elastomer |
| Thread length (mm) | 8.0000 |
| RAL | 9005.0000 |
| Variant | PG |
| Number of holes x d | 3 x 3 |
| Tightening torque [Nm] | 3.0000 |
| Wrench size 1 (SW1) [mm] | 22.0000 |
| Wrench size (SW) [mm] | 22.0000 |
| Norms | RoHS |
| Temperature Range | -40°C to +100°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
