Hummel

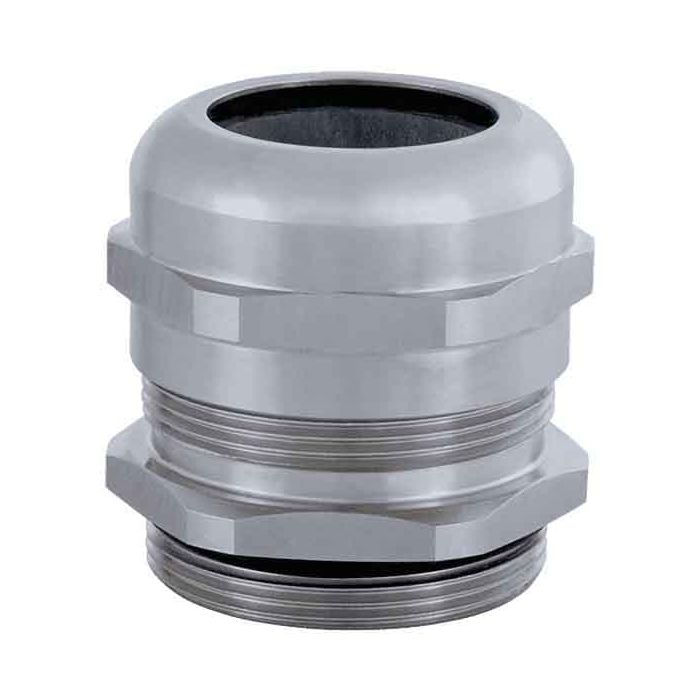

Cable gland made of brass with EMC protection and metric thread
Cable gland made of brass with EMC protection and metric thread Protection class - IP 68 – 5 bar. Version - short. Seal - NBR
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1607500050 |
| Video URL | https://youtu.be/9kLmHqsxKFo |
| Weight (kg) | 0.22095 |
| Customs tariff number | 85369010 |
| EAN code | 4033878428641 |
| ETIM 7 | EC000441 |
| Packaging Unit | 5 |
| Height (mm) | 50.7 |
| Certificates | UR, cUR |
| Version | short |
| External thread (AG) | M50 x 1,5 |
| Material seals / O-rings | NBR |
| Cable diameter (mm) | 27 – 35 |
| Wrench size SW1 / SW2 (mm) | 55/55 |
| Protection class | IP 68 – 5 bar |
| Material | Nickel-plated brass |
| Seal | NBR |
| Thread length (mm) | 9.0000 |
| Variant | Metric |
| Tightening torque [Nm] | 40.0000 |
| Wrench size 1 (SW1) [mm] | 55.0000 |
| Wrench size (SW) [mm] | 55.0000 |
| Clamping insert | Polyamide |
| Norms | RoHS, EMV |
| Temperature Range | -40°C to +100°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
