1.608.5403.70
1.608.5403.70
Hummel

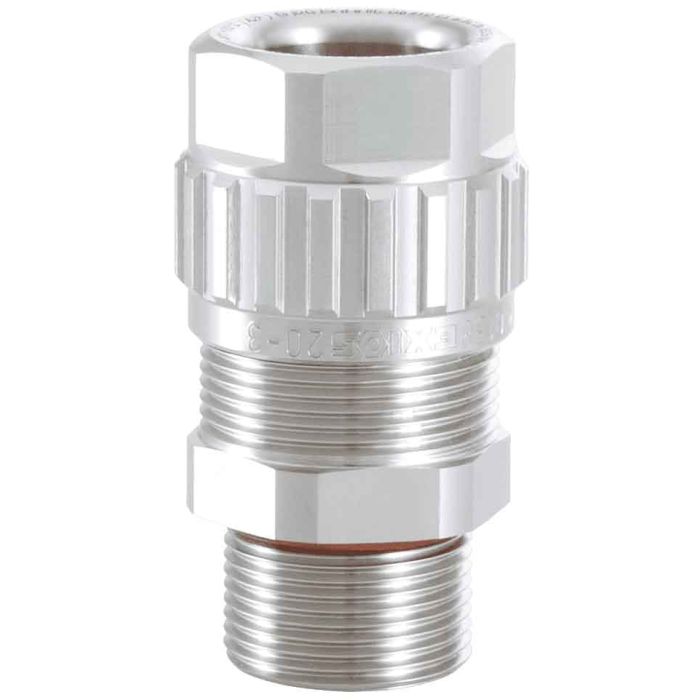

EXIOS A2F cable gland made of nickel-plated brass
EXIOS A2F cable gland made of nickel-plated brass Protection class - IP 68 – 5 bar, IP 66, IP 68. Version - . Seal - VMQ (silicone)
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 1608540370 |
| Video URL | https://youtu.be/tNYvat73Jp4 |
| Weight (kg) | 0.366 |
| Customs tariff number | 74199990 |
| EAN code | 4033878429136 |
| ETIM 7 | EC000441 |
| Packaging Unit | 1 |
| Height (mm) | 51.1 |
| Certificates | CE, DNV-GL, ABS, ATEX, IECEx, EAC, INMETRO, CSA, KTL |
| External thread (AG) | NPT 1 1/4" |
| Material seals / O-rings | VMQ (silicone) |
| Wrench size SW1 / SW2 (mm) | 46/46 |
| Protection class | IP 68 – 5 bar, IP 66, IP 68 |
| Material | Nickel-plated brass |
| Seal | VMQ (silicone) |
| Thread length (mm) | 26 |
| Variant | NPT |
| Tightening torque [Nm] | 30 |
| Wrench size 1 (SW1) [mm] | 46 |
| Wrench size (SW) [mm] | 46 |
| Ex-protection level | Class I Div 2 Groups A,B,C,D, Class II Div 1 Groups E,F,G , II 1D Ex ta IIIC Da, II 2G Ex eb IIC Gb |
| Clamping insert | Polyamide 6 |
| A1 (mm) | 22 – 33 |
| Norms | RoHS |
| Gland size | 32 |
| Temperature Range | -60°C to +105°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
