Hummel

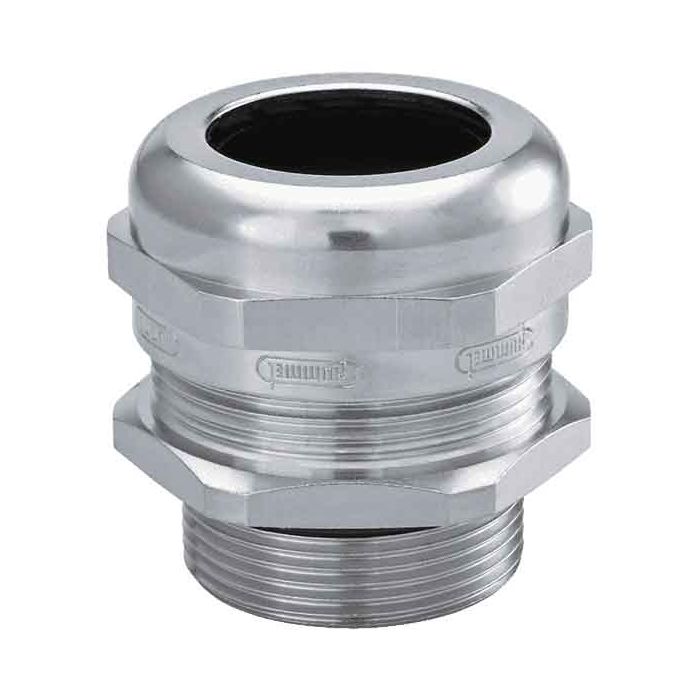

Cable gland made of brass
Cable gland made of brass Protection class - IP 68 – 10 bar, IP 69 K. Version - long. Seal - NBR
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1609480061 |
| Video URL | https://youtu.be/TL8yBdE8RXU |
| Weight (kg) | 0.32332 |
| Further information | Other sealing material e.g. Silicone upon request |
| Customs tariff number | 74199990 |
| EAN code | 4033878430057 |
| ETIM 7 | EC000441 |
| Packaging Unit | 5 |
| Height (mm) | 38.0000 |
| Certificates | DNV-GL, UL, CSA, Bahnzulassung, cUL, CE |
| Version | long |
| External thread (AG) | PG 48 |
| Material seals / O-rings | NBR |
| Cable diameter (mm) | 29 – 35 |
| Wrench size SW1 / SW2 (mm) | 64/64 |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | Nickel-plated brass |
| Seal | NBR |
| Thread length (mm) | 15.0000 |
| Variant | PG.-long |
| Tightening torque [Nm] | 30.0000 |
| Wrench size 1 (SW1) [mm] | 64.0000 |
| Wrench size (SW) [mm] | 64.0000 |
| Clamping insert | Polyamide V0 according to UL 94 |
| NEMA type rating | 4, 4X, 6 |
| Norms | RoHS |
| Temperature Range | -40°C to +100°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
