1.610.3200.30
1.610.3200.30
Hummel

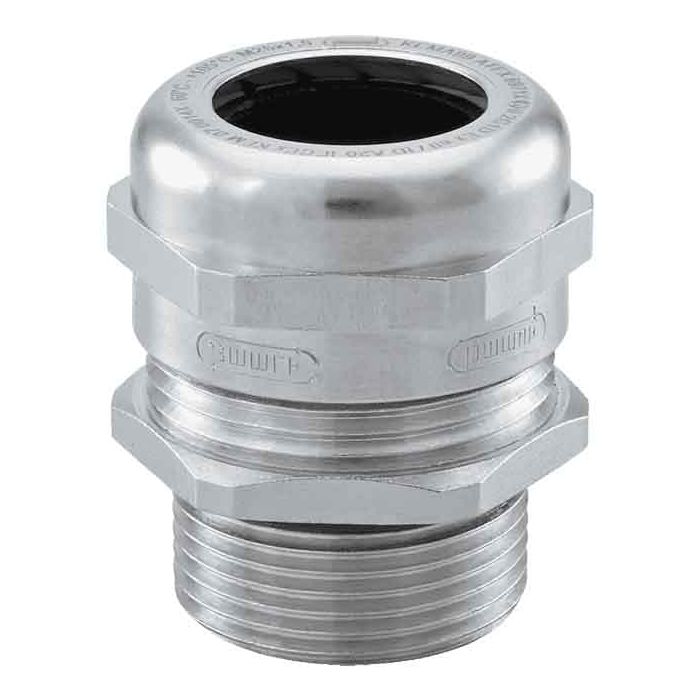

Cable gland made of brass for hazardous areas
Cable gland made of brass for hazardous areas Protection class - IP 68 – 10 bar, IP 69 K. Version - long. Seal - NBR
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1610320030 |
| Weight (kg) | 0.1039 |
| Customs tariff number | 74199990 |
| EAN code | 4033878430705 |
| ETIM 7 | EC000441 |
| Packaging Unit | 25 |
| Height (mm) | 31.0000 |
| Certificates | ATEX, VDE, EAC, INMETRO, IECEx, CSA, DNV-GL, CE, UL, cUL, cCSAus |
| Version | long |
| External thread (AG) | M32 x 1,5 |
| Material seals / O-rings | NBR |
| Cable diameter (mm) | 20 – 25 |
| Wrench size SW1 / SW2 (mm) | 40/40 |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | Nickel-plated brass |
| Seal | NBR |
| Thread length (mm) | 12.0000 |
| Variant | Metric-long |
| Tightening torque [Nm] | 15.0000 |
| Wrench size 1 (SW1) [mm] | 40.0000 |
| Wrench size (SW) [mm] | 40.0000 |
| Ex-protection level | II 1D Ex ta IIIC Da, II 2G Ex eb IIC Gb |
| Clamping insert | Polyamide V0 according to UL 94 |
| NEMA type rating | 4, 4X, 6 |
| Norms | RoHS |
| Temperature Range | -20°C to +95°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
