1.612.1100.01
1.612.1100.01
Hummel

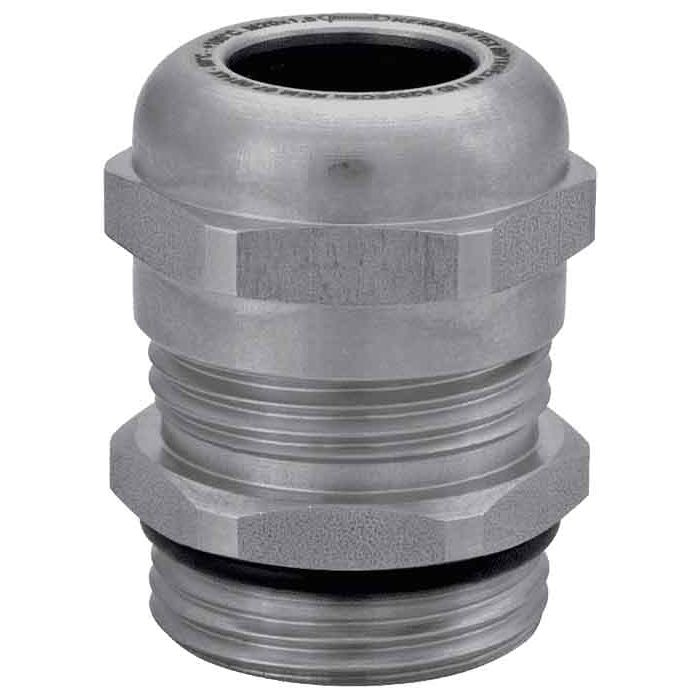

Cable gland made of stainless steel for hazardous areas
Cable gland made of stainless steel for hazardous areas Protection class - IP 68 – 10 bar, IP 69 K. Version - short. Seal - NBR
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1612110001 |
| Weight (kg) | 0.02281 |
| Customs tariff number | 73269098 |
| EAN code | 4033878431306 |
| ETIM 7 | EC000441 |
| Packaging Unit | 10 |
| Height (mm) | 22.0000 |
| Certificates | CE, CSA, IECEx, EAC, ATEX, DNV-GL, INMETRO, cUR, UR, cCSAus |
| Version | short |
| External thread (AG) | PG 11 |
| Material seals / O-rings | NBR |
| Cable diameter (mm) | 5 – 10 |
| Wrench size SW1 / SW2 (mm) | 22/22 |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | INOX 1.4305 |
| Seal | NBR |
| Thread length (mm) | 6.0000 |
| Variant | PG |
| Tightening torque [Nm] | 5.0000 |
| Wrench size 1 (SW1) [mm] | 22.0000 |
| Wrench size (SW) [mm] | 22.0000 |
| Ex-protection level | II 1D Ex ta IIIC Da, II 2G Ex eb IIC Gb |
| Clamping insert | Polyamide V0 according to UL 94 |
| NEMA type rating | 4, 4X, 6 |
| Norms | RoHS |
| Temperature Range | -20°C to +95°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
