Hummel

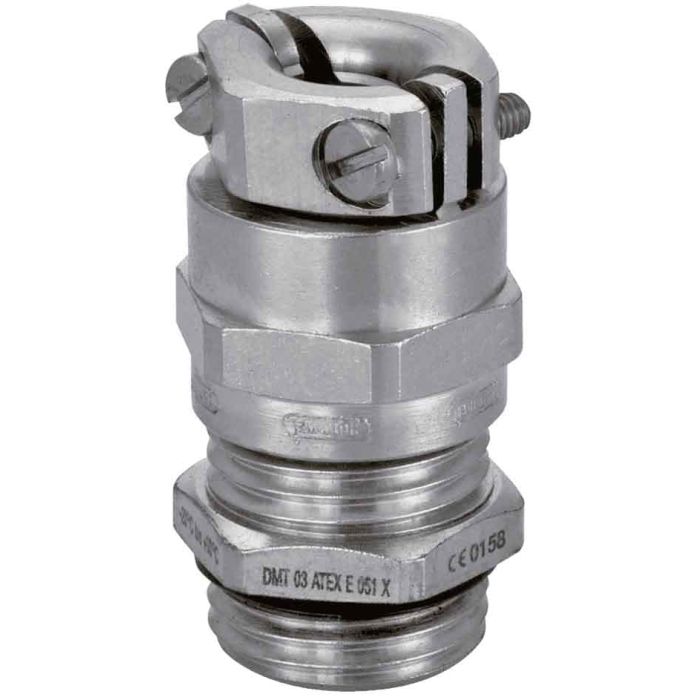

Cable gland made of brass with EMC protection, bend protection and strain relief for hazardous areas
Cable gland made of brass with EMC protection, bend protection and strain relief for hazardous areas Protection class - IP 68 – 10 bar, IP 69 K. Version - short. Seal - NBR
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1617250050 |
| Weight (kg) | 0.09845 |
| Further information | Elongated threads on request |
| Customs tariff number | 85369010 |
| EAN code | 4033878432068 |
| ETIM 7 | EC000441 |
| Packaging Unit | 25 |
| Height (mm) | 35.0000 |
| Certificates | CE, IECEx, EAC, ATEX, DNV-GL, cUL, UL, INMETRO, cCSAus |
| Version | short |
| External thread (AG) | M25 x 1,5 |
| Material seals / O-rings | NBR |
| Cable diameter (mm) | 14 – 18 |
| Wrench size SW1 / SW2 (mm) | 30/30 |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | Nickel-plated brass |
| Seal | NBR |
| Thread length (mm) | 7.0000 |
| Variant | Metric |
| Tightening torque [Nm] | 12.0000 |
| Wrench size 1 (SW1) [mm] | 30.0000 |
| Wrench size (SW) [mm] | 30.0000 |
| Ex-protection level | II 1D Ex ta IIIC Da, II 2G Ex eb IIC Gb |
| Clamping insert | Polyamide V0 according to UL 94 |
| NEMA type rating | 4, 4X, 6 |
| Norms | RoHS, EMV |
| Temperature Range | -20°C to +95°C |
