1.623.1200.30
1.623.1200.30
Hummel

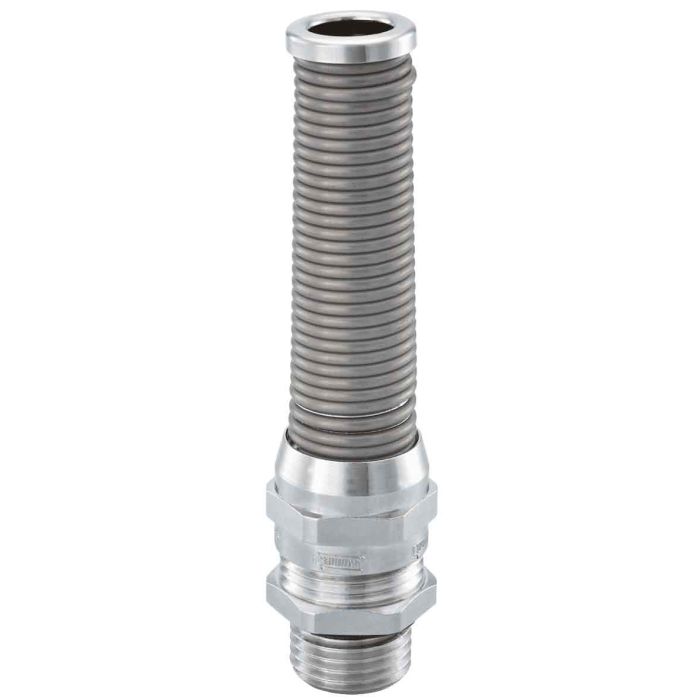

Cable gland made of brass with bend protection
Cable gland made of brass with bend protection Protection class - IP 68 – 10 bar, IP 69 K. Version - long. Seal - NBR
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 1623120030 |
| Weight (kg) | 0.02307 |
| Further information | Other sealing material e.g. Silicone upon request |
| Customs tariff number | 74199990 |
| EAN code | 4033878432891 |
| ETIM 7 | EC000441 |
| Packaging Unit | 50 |
| Height (mm) | 55 |
| Certificates | CSA, UR, DNV-GL, Bahnzulassung, cUR, CE |
| Version | long |
| External thread (AG) | M12 x 1,5 |
| Material seals / O-rings | NBR |
| Cable diameter (mm) | 3 – 6.5 |
| Wrench size SW1 / SW2 (mm) | 14/14 |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | Nickel-plated brass |
| Seal | NBR |
| Thread length (mm) | 10 |
| Variant | Metric-long |
| Tightening torque [Nm] | 4 |
| Wrench size 1 (SW1) [mm] | 14 |
| Wrench size (SW) [mm] | 14 |
| d (mm) | 6.8 |
| Clamping insert | Polyamide V0 according to UL 94 |
| Steel spring | INOX 1.4310 |
| NEMA type rating | 4, 4X, 6 |
| Norms | RoHS |
| Temperature Range | -40°C to +100°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
